A system is available if it is ready to correctly deliver the
service that it is designed to provide. Availability may be hindered
by several causes, among which:
failures, i.e., accidental events or conditions that prevent the
system, or any of its components, from meeting its specification;
overload, i.e., excessive demand on the resources of the system,
leading to service degradation or disruption;
security attacks, i.e., deliberate attempts at disturbing the
correct operation of the system, causing malfunction or denial of
service.
In this chapter, we examine how availability can be maintained in the
presence of failures. Overload conditions are discussed in
Chapter 12
and security attacks in Chapter 13
.
This section presents a few elementary notions related to fault
tolerance: availability and reliability measures
(11.1.1); basic terminology (11.1.2);
models of fault tolerance (11.1.3); availability issues
for middleware (11.1.4). Section
11.2 examines the main aspects of fault tolerance:
error detection, error recovery, and fault masking.
This presentation is only intended to provide the minimal context
necessary for this chapter, not to cover the subject in any depth. For
a detailed study, see Chapter 3 of [Gray and Reuter 1993].
The measure of availability applies to a system as a whole or to any
of its individual components (we use the general term "system" in
the following). A system's availability depends on two factors:
The intrinsic failure rate of the system, which defines the
system's reliability.
The mean time needed to repair the system after a failure.
The reliability of a system is measured by the mean time that the
system runs continuously without failure. More precisely, consider a
system being started (or restarted) at some instant, and let f be
the length of time till its first failure. This is a random variable
(since failures are mostly due to random causes). The mean (or
expected value) of this variable f is called the Mean Time To
Failure (MTTF) of the system.
Depending on the causes of the failures, the MTTF of a system
may vary with time (e.g., if failures are related to aging, the
MTTF decreases with time, etc.). A current assumption (not
valid for all systems) is that of failures caused by a memoryless
process: the probability rate of failure per unit time is a constant,
independent of the past history of the system. In that case, the
MTTF is also a constant1.
Likewise, the repair rate is measured by the expected value of the
time needed to restore the system's ability to deliver correct
service, after a failure has occurred. This is called the Mean Time To
Repair (MTTR). One also defines Mean Time Between Failures
(MTBF) as MTTF + MTTR. In the rest of this section, we assume
that both the MTTF and the MTTR are constant over time.

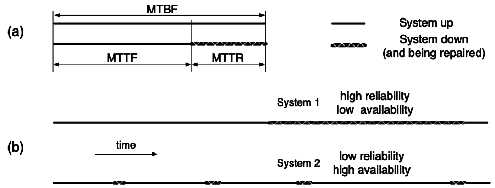

Figure 11.1: Reliability vs Availability
Assume a failure mode (the fail-stop mode, see 11.1.3)
in which the system is either correctly functioning or stopped (and
being repaired). Define the availability a of a system as the
mean fraction of time that the system is ready to provide correct service.
Then (see Figure 11.1a), the
relationship between availability and reliability is given by:
a = MTTF/(MTTF + MTTR) = MTTF/MTBF.
The distinction between reliability and availability is further illustrated in
Figure 11.1b.
To emphasize the importance of the repair time, note that the
unavailability rate of a system is 1 - a = MTTR/(MTTF+MTTR) » MTTR/MTTF, because in most practical situations MTTR << MTTF. Thus
reducing MTTR (aiming at quick recovery) is as important as
increasing MTTF (aiming at high reliability). This remark has
motivated, among others, the Recovery Oriented Computing initiative
[ROC 2005].
In practice, since the value of a for a highly available system is a
number close to 1, a common measure of availability is the "number of
9s" (e.g., five nines means a = 0.99999, a mean down time of about
5 minutes per year).
In order to clarify the concepts of dependability (a notion that
covers several qualities, including fault tolerance and security), and
to define a standard terminology for this area, a joint committee of
the IEEE and the IFIP was set up in 1980 and presented its proposals
in 1982. A synthetic presentation of the results of this effort is
given in [Laprie 1985]. A more recent and more complete
document is [Avizienis et al. 2004]. These definitions are now
generally accepted.
We briefly present the main notions and terms related to fault tolerance (a
summary is given in 9.1.2
).
A system is subject to a failure whenever it deviates from its
expected behavior. A failure is the consequence of the system being
in an incorrect state; any part of a system's state that fails to meet
its specification is defined as an error. An error, in turn, may be
due to a variety of causes: from human mistake to malfunction of a
hardware element to catastrophic event such as flood or fire. Any
cause that may lead to an error, and therefore may ultimately occasion
a failure, is called a fault.
The relationship between fault and error and between error and failure
is only a potential one. A fault may exist without causing an error,
and an error may be present without causing a failure. For example, a
programming error (a fault) may lead to the corruption of an internal
table of the system (an error); however the table being in an
incorrect state does not necessarily lead to a failure. This is
because the incorrect values may never be used, or because the
internal redundancy of the system may be such that the error has no
consequence on the system's behavior. A fault that does not cause an
error is said to be dormant; likewise, an undetected error is
said to be latent. If the failure does occur, the time delay
between the occurrence of the fault and the failure is called the
latency. A long latency makes it difficult to locate the origin of a
failure.
In a complex system, a fault which affects a component may cause the
system to fail, through a propagation mechanism that may be
summarized as follows (Figure 11.2).

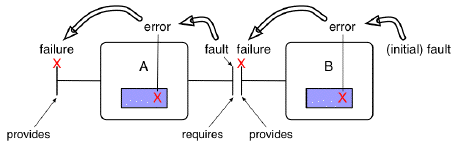

Figure 11.2: Error propagation
Suppose component A depends on component B, i.e., the correct
operation of A relies on the correct provision of a service by B
to A. A fault that affects B may cause an error in B, leading to
the failure of B. For A, the inability of B to deliver its
service is a fault. This fault may lead to an error in A, possibly
causing the failure of A. If A is itself used by another component,
the error may propagate further, and eventually lead to the failure of
the whole system.
How to prevent the occurrence of failures? The first idea is to try to
eliminate all potential causes of faults. However, due to the nature
and variety of possible faults (e.g., human mistakes, hardware
malfunction, natural causes, etc.), perfect fault prevention is
impossible to achieve. Therefore, systems must be designed to
operate in the presence of faults. The objective is to prevent a
fault from provoking a failure, and, if a failure does occur, to
recover from it as fast as possible. Methods for achieving this goal
are presented in 11.2.
Recall (see 1.4.1
) that a model is a simplified representation of (part of) the real
world, used to better understand the object being represented. Models
are specially useful in the area of fault tolerance, for the following
reasons:
It is convenient to have a framework to help classify and
categorize the faults and failures, because of their wide variety.
The tractability of several problems in fault tolerance strongly
depends on the hypotheses on the structure and operation of the
system under study. A model helps to accurately formulate these
assumptions.
We represent the system as a set of components which communicate
through messages over a communication system (see Chapter
4
).
Here is a (simplified) classification of failures, in increasing degree
of severity (see e.g., [Avizienis et al. 2004] for more details,
and for a taxonomy of faults). The component affected by the failure is
referred to as "the component".
The simplest failure mode is called fail-stop. When such
a failure occurs, the component immediately stops working (and
therefore stops receiving and sending messages). Thus, in the
fail-stop mode, a component is either operating correctly or
inactive2.
In omission failures, the component may fail to send
and/or to receive some messages. Otherwise its behavior is normal.
This failure mode may be useful to simulate a malfunction of the
communication system.
Timing failures only affect the temporal behavior of the
component (e.g., the time needed to react to a message).
In the most general failure mode, the behavior of the failed
component is totally unrestricted. For historical reasons
[Lamport et al. 1982], this kind of failures is called
Byzantine. Considering Byzantine failures is useful for two
reasons. From a theoretical point of view, this failure mode is the
most difficult to handle. From a practical point of view, solutions
devised for Byzantine failures may be used in the most extreme
conditions, e.g., for critical applications in a hostile
environment, or for systems subject to attacks.
The behavior of the communication system has a strong influence on
fault tolerance techniques. We consider two main issues: asynchrony
and message loss.
Regarding asynchrony, recall (4.1.2
) that a distributed system, consisting of nodes linked by a
communication system, may be synchronous or asynchronous. The system
is synchronous if known upper bounds exist for the transmission
time of an elementary message, and for the relative speed ratio of any
two nodes. If no such bounds exist, the system is asynchronous.
Intermediate situations (partially synchronous systems) have also been
identified [Dwork et al. 1988]. Some form of synchrony is
essential in a distributed system, because it allows the use of
timeouts to detect the failure of a remote node, assuming the
communication link is reliable (details in 11.4.1).
In an asynchronous system, it is impossible to distinguish a slow
processor from a faulty one, which leads to impossibility results for
some distributed algorithms in the presence of failures (details in
11.3.3).
Regarding message loss, the main result [Akkoyunlu et al. 1975], often
known as the Generals' paradox [Gray 1978], is the following.
Consider the coordination problem between two partners, A and B,
who seek agreement on a course of action (both partners should perform
the action, or neither). If the communication system linking A and
B is subject to undetected message loss, no terminating agreement
protocol can be designed. The communication protocols used in
practice (such as TCP) do not suffer from this defect, because they
implicitly assume a form of synchrony. Thus the loss
of a message is detected by acknowledgment and timeout, and the
message is resent till either it is successfully received or the link
is declared broken.
We are specifically interested in availability support at the
middleware level. Middleware sits above the operating system and
networking infrastructure, and provides services to applications. Thus
we need to examine (a) the assumptions on the properties of the
infrastructure; and (b) the availability requirements placed by
applications on the middleware layer.
Middleware most frequently uses the communication services
provided by the network transport level (4.3.2
). The guarantees ensured by these services vary according to the
nature of the network (e.g., a cluster interconnect, a LAN, the global
Internet, a wireless network). However, for all practical purposes,
we make the following assumptions in the rest of this chapter:
The communication system is reliable, i.e., any message
is eventually delivered uncorrupted to its destination, and the
system does not duplicate messages or generate spurious messages.
The middleware system is partially synchronous, in the
following sense: there exists bounds on the transmission time of a
message and on the relative speed of any two processes, but these
bounds are unknown a priori and only hold after some time.
This assumption is needed to escape the impossibility results (see
11.3.3) that hold in asynchronous systems; its validity
is discussed in 11.4.1.
Different assumptions may be needed in specific cases, e.g., message loss
and network partition in the case of wireless networks.
We assume a fail-stop (or fail-fast) failure mode for components, be
they hardware or software. Again, different assumptions may hold in
specific situations. Since a system is made of a (potentially large) number
of components, a common situation is one in which some part of the system
is subject to failure. The goal is then to preserve the ability of the system
to deliver its service, possibly with a degraded quality. This issue is
developed in 11.8.
According to the "end to end principle" ([Saltzer et al. 1984],
see also 4.2.2
), some functions, including those
related to fault tolerance, are best implemented at the application
level, since the most accurate information about the application state
and the goals to be pursued is available at that level. The role of
middleware with respect to fault tolerance is to provide the tools to
be used by the applications to achieve specified availability
guarantees. To do so, the middleware layer uses the communication
primitives of the transport level, such as specified above. For
example (see 11.4), the middleware
layer uses reliable point to point transmission to implement reliable
broadcast and atomic broadcast, which are in turn used to improve
availability at the application level.
What are the main causes of failures in actual systems? Two landmark
papers are [Gray 1986], which analyzes failures in the Tandem
fault-tolerant servers, and [Oppenheimer et al. 2003], which investigates
failures in large scale Internet services. Both studies observe that
system administration errors are the dominant cause of failure (about
40% for servers, 35% for Internet services). Most of these
administration errors are related to system configuration.
Software failures account for about 25% in both studies. The part of
hardware is about 18% for servers, 5 to 10% for Internet services.
The proportion of network failures in Internet services depends on the
nature of the application, in the range of 15 to 20%, and may reach
60% for "read mostly" services. Contrary to the fail-stop
assumption, network failures tend to be gradual, and are less easily
masked than hardware or software failures.
Fault tolerance is based on a single principle, redundancy, which may take
various forms:
Information redundancy. Adding redundant information helps
detecting, or even correcting, errors in storage or in transmission.
In particular, our assumption on reliable transmission is based on
the use of error detecting or correcting codes, together with
sending retries, at the lower levels of the communication protocols.
Temporal redundancy. This covers the use of replicated
processing: the same action is performed in several instances,
usually in parallel, to increase the probability that it will be
achieved at least once in spite of failures. The application of this
principle is developed in 11.6.
Spatial redundancy. This covers the use of replicated data:
information is maintained in several copies to reduce the
probability of data loss or corruption in the presence of failures.
The application of this principle is developed in
11.7.
There are many ways to exploit these forms of redundancy, leading to
several fault tolerance techniques, which in turn can be combined to
ensure system availability. The main basic techniques can be
categorized as follows.
Error detection is the first step of any corrective course
related to fault tolerance. It identifies the presence of an error (a
system state that does not satisfy its specification), and triggers
the further operations. Error detection is further detailed in
11.2.1.
Error compensation (or fault masking) consists in providing the
system with enough internal redundancy so as to cancel the effects of
an error, thus preventing the occurrence of a fault from causing the
system to fail. Masking is further detailed in 11.2.3.
If failure actually occurs, error recovery aims at restoring
the system's ability to deliver correct service by eliminating the
errors that caused the failure. Two main approaches may be followed
(more details in 11.2.2).
Backward recovery consists in bringing the system back to
a past state known to be correct. This is a generally applicable
technique, which relies on the periodic saving of the (correct)
system state (checkpointing).
Forward recovery aims at reconstructing a correct state
from the erroneous one. This technique implies that the system state
contains enough redundancy to allow reconstruction, which makes it
dependent from the specificities of the system. State reconstruction
may be imperfect, in which case the service may be degraded.
As a practical conclusion of this brief review, there is no single
universal method to ensure fault tolerance. The method chosen for each
concrete case strongly depends on its specific aspects. Therefore, it
is important to make all assumptions explicit, and to verify that the
assumptions are indeed valid. For instance, fault masking by redundant
processing is only effective if the replicated elements are subject to
independent faults. Modularity is helpful for fault tolerance, since
it restricts the range of analysis, and makes error detection and
confinement easier.
Achieving fault tolerance remains a
difficult proposition, as illustrated by such "horror stories" as
the Ariane 5 [Lions et al. 1996] and Therac 25 [Leveson and Turner 1993] failures.
The goal of error detection is to identify the presence of an error,
i.e., a system state that deviates from its specification. The
motivation is to prevent (if possible) the error to cause the affected
component(s) to fail, to avoid the propagation of the error to other
parts of the system, and to better understand the fault that caused
the error, in order to prevent further occurrences of the fault.
Two qualities are attached to error detection.
Latency, the time interval between the occurrence of an
error and its detection.
Coverage, the ratio of detected errors to existing errors.
Error detection techniques depend on the nature of the error. For
instance a fault in a processor may cause it to deliver incorrect
output, or to stop. In the first case, the output needs to be analyzed
by one of the techniques described below; in the second case, a
failure has occurred, and failure detection techniques are needed.
Failure detection is the subject of 11.4.1. Here we
only examine the detection of errors in data.
A first category of methods uses redundancy. One common technique for
detecting errors in data transmission relies on error-detecting codes.
For example, one extra (parity) bit detects an error affecting one data
bit. With more redundancy (error-correcting codes), an error may even
be corrected. A textbook on error correction is [Blahut 2003].
For data production (as opposed to transmission), errors may be
detected by comparing the results of replicated data sources. For
example, bit by bit comparison of the output of two identical
processors, with identical inputs, allows error detection. One needs
to make sure that the replicated data sources have independent failure
modes (e.g., separate power supply, etc.). Techniques based on
comparison have a high cost, but ensure low latency and high coverage
rate.
Another class of methods relies on plausibility checks. These methods
are application dependent. For instance, the values output by a
process may be known to be in a certain range, and this property may
be checked. Alternatively, bounds may be known for the variation rate
in a series of output values. Plausibility checks are usually lest
costly than techniques based on redundancy. Their latency depends on
the specific situation. Their weak point is their coverage rate,
which is often small, because plausibility usually entails loose
constraints.
Examples of the use of error detection techniques are presented in
the case studies (11.9).
As noted in 11.2, backward recovery is a general
technique, while forward recovery is application-specific. In this
section, we briefly examine the main aspects of backward recovery.
Stated in general terms, the principle of backward recovery is to
replace an erroneous system state by a previously recorded correct
state, an operation called rollback. The process of state
recording is known as checkpointing. The state is copied on
stable storage, a highly available storage medium.
The state of a distributed system consists of the local states of its
components, together with the state of the communication channels,
i.e., the messages that were sent but not yet delivered. This state
must be consistent, i.e., it must be the result of an observation that
does not violate causality. To explain this notion, consider a system
made up of two components A and B, and suppose A sends a message
m to B. If A registers its state before sending m, and
B registers its state after receiving m, the global
checkpointed state is inconsistent, because it records the receipt of
a message that has not been sent.
There are two main techniques to construct a consistent state. In
coordinated checkpointing, the components of the system register their
state in a coordinated way, by exchanging messages, so as to ensure
that the recorded state (including the state of the communication
channels) is consistent. A coordination algorithm is described in
[Chandy and Lamport 1985]. In uncoordinated checkpointing, components
checkpoint their state independently. If recovery is needed, a
consistent state must be reconstructed from these independent records,
which implies that multiple records must be conserved for each
component.
Coordinated checkpointing is usually preferred, since it implies less
frequent state saving (state recording on stable storage tends to be
the major component of the cost). In addition, a technique known as
message logging allows a more recent state to be reconstructed from
a consistent checkpoint, by recording the messages sent by each process,
and replaying the receipt of these messages, starting from the recorded
state. A survey of checkpoint-based recovery is [Elnozahy et al. 2002].
Backward recovery is illustrated by two examples, which are further detailed
in this chapter.
Process pairs, a technique introduced in the HP NonStop
system (originally Tandem [Bartlett 1981]). In this
system, all hardware components (CPU, bus, memory modules,
controllers, disks) are replicated, and the operating system
implements highly available processes, by representing a process by
a pair of processes running on different processors. More details in
11.6.2.
Micro-reboot, a technique used in multi-tier middleware
[Candea et al. 2004]. This technique is based on the empirical
observation that a software failure of undetermined origin is
usually cured by rebooting the system (restarting from a "clean"
state). The difficulty is to determine the environment to be
rebooted: it should be large enough to repair the error, but as
small as possible for efficiency. More details in
.
See [Bartlett and Spainhower 2004] for a review and a comparison of two highly
available commercial systems using recovery (HP-Tandem NonStop and IBM
zSeries).
Fault masking (providing the system with enough internal redundancy to
suppress the effect of a fault) has been used for a long time to
improve the availability of circuits, through the technique of Triple
Modular Redundancy (TMR). The circuit is organized in successive
stages (the output of stage i is the input of stage i + 1), and
the components of each stage are replicated in three instances,
connected to a majority voter. The main assumption is that the
replicated components are highly reliable and fail
independently3. The voter compares the output of the
three components. In the absence of failures, the three outputs are
identical. If one output differs from the other two, it is considered
faulty, and discarded. The probability of the three outputs being
different (i.e., at least two faulty components) is assumed to be
negligible. Since the voter itself is a component that may fail, it is
also replicated in three instances. This system tolerates the failure
of one component at each stage.
Another instance of hardware fault masking using voting is the design
of the Tandem Integrity system, in which the voter compares the output
of three replicas of the CPU, thus masking the failure of one replica.
In contrast with the Tandem NonStop system (11.2.2),
which relies on process pairs supported by a special purpose operating
system, Tandem Integrity can use any standard system, such as Unix.
A general method for ensuring fault masking is described in
11.3.1.
A generic model that captures the notion of redundancy, based on
state machines, is described in 11.3.1. To use
this model to actually implement fault tolerant systems, one needs
group communication protocols, whose specification and implementation
are respectively examined in 11.3.2 and
11.4.
A general model for a hardware or software system (or for a system component)
is that of a deterministic state machine (SM), executed by a
process which receives requests on an input channel and sends answers
on an output channel. A number of such machines may be assembled to
make up a complex system.
The behavior of the state machine may be described as follows.
Call S0 the initial state of the SM and Sk its state after
having processed the kth request rk (k = 1, ...). The
effect of the receipt of request ri is the following:
(a) Si = F(Si - 1, ri)
(b) ai = G(Si - 1, ri)
(c) the answer ai is sent on the output channel.
The functions F and G (the state transition
function and the output function, respectively) define the behavior of the SM.
In order to ensure consistency, causal order4 must be preserved for request transmission: if send(r)
and send(r¢) are the events of sending two requests, and if
send(r) happens before send(r¢), then r¢ cannot be delivered to
the SM unless r has been delivered.
A system implemented as an SM can be made tolerant to a number f of
failures, by the following method. The SM (together with the
process that executes it) is replicated in N copies (or replicas),
where N = f +1 in the case of fail-stop failures, and N = 2f +1 in
the case of Byzantine failures (in this latter case, a majority of
correct processes is needed). There are two main approaches to
ensure that the system is available, as
long as the number of faulty replicas is less or equal to f.

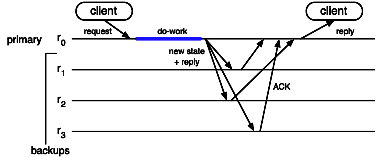

Coordinator-based replication. In this approach, also
called primary-backup [Schneider 1993], a
particular replica is chosen as coordinator (or primary); the other
replicas are called back-ups. The requests are sent to the
primary. The primary's task is (i) to process the requests
and to send the replies; and (ii) to keep the back-ups consistent.
If the primary fails, one of the back-ups becomes the new
primary. As shown in 11.6, this technique
relies on a particular communication protocol (reliable
view-synchronous broadcast), which guarantees that, whenever the
primary fails, the new primary is in a state that allows it
to correctly fulfill its function.

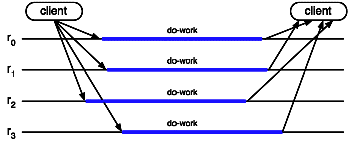

Active replication. In this approach, also called
replicated state machine [Lamport 1978a,Schneider 1990], all replicas have the same role, and each
request is directly sent to each replica. Since the behavior of the
SM is deterministic, a sufficient condition for the N replicas to
behave identically (i.e., to keep the same state and to send the
same replies) is that all replicas receive the same requests,
in the same order. Achieving fault tolerance with active
replication therefore relies on a particular communication protocol
(causal totally ordered broadcast), which is discussed in more
detail in 11.3.2 and 11.4.2,
together with other forms of group communication.
These approaches define two basic patterns that are recurrent in fault
tolerance techniques. System implementations based on both approaches
are described in more detail in 11.6.
Since fault tolerance is based on replication, process groups play a
central role in the design of fault tolerant systems. For example, as
seen in 11.2.3, a group of processes can be organized
as a reliable implementation of a single process, using the replicated
state machine approach. However, this places specific requirements on
communication within the group (in this case, totally ordered
broadcast is required).
In this section, we introduce the main concepts and terminology of
process groups and we discuss the requirements of group communication
and membership protocols. The implementation of these protocols is
subject to impossibility results, which are examined in
11.3.3. Practical approaches to group communication are
the subject of 11.4.
A process group is a specified set of processes (the members of the
group), together with protocols related to:
Group communication (broadcast or multicast), i.e., sending a
message to the members of the group, with specified requirements.
Group membership, i.e., changing the composition of the group.
The system maintains knowledge about the current composition of the
group, represented by a view (a list of processes).

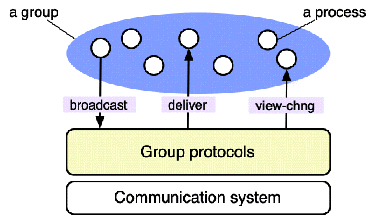

A global picture of group protocols is shown in Figure
11.3.
Figure 11.3: Group protocols
A typical API for group protocols includes the following primitives:
broadcast(p, m). Process p broadcasts message m to the
group.
deliver(p, m). Message m is delivered to process p.
view-chng(p, id, V). Following a change in the group
membership, a new view, V, identified by number id, is delivered
to process p.
Additional primitives may be provided by specific systems (examples are
given below).
Process groups are useful for implementing fault tolerant systems, and
also for supporting information sharing and collaborative work.
Group protocols are an important subject of ongoing research, because
two of their main aspects are still not well understood. First,
specifying a group protocol is a non-trivial task. Group protocol
specification is the subject of [Chockler et al. 2001], who note that most
existing specifications (at the date of writing) are incomplete,
incorrect, or ambiguous. Second, implementing fault tolerant group
protocols is often algorithmically difficult, or, in some cases,
impossible (see 11.3.3).
We now review the specifications of the most usual protocols.
Group communication protocols
In group communication primitives, a process (the sender) sends
a message to a set of destination processes (the receivers).
There are two main forms of group communication primitives, which
differ by the definition of the receivers.
Broadcast. The receivers are the processes of a single
process set, which may be explicitly or implicitly defined, and
which includes the sender. Examples: all members of a process group;
"all" processes of a system.
Multicast. The receivers are the members of one or
several process groups, which may or not overlap. The sender may or
not be part of the receivers.
The main problems specific to multicast are related to overlapping
destination groups. We only consider here the case of broadcast.
The specifications of broadcast are discussed in detail in
[Hadzilacos and Toueg 1993] and [Chockler et al. 2001]. Assume a fail-stop
failure mode (without repair) for processes, and a reliable,
asynchronous communication system. A process is said to be
correct if it does not fail.
The minimal requirement for a broadcast primitive is that it be
reliable, which is an "all or nothing" property: a message
must be delivered to all of its correct receivers, or to none. More
precisely, if a message is delivered to one correct receiver,
it must be delivered to all correct receivers. A broadcast
protocol that is not reliable is not of much practical use. The value
of reliability lies in the shared knowledge that it implies: when a
broadcast message is reliably delivered to a correct process, the
process "knows" that this message will be delivered to all correct
processes in the destination set.
A much stronger requirement is that of total order. A totally
ordered, or atomic, broadcast is a reliable broadcast in
which all receivers get the messages in the same order. More
precisely, if two messages, m1 and m2, are delivered to a
correct process p in that order, then m2 may not be delivered to
another correct process q unless m1 has been first delivered to
q.
The two above requirements are independent of the order in which
messages are being sent. Another set of requirements involves the sending
order:
FIFO broadcast: two messages issued by the same sender must be
delivered to all receivers in their sending order. More precisely, if
a process has broadcast m1 before m2, then m2 may not be
delivered to a correct process q unless m1 has been first
delivered to q.
Causal broadcast: If the sending events of two messages are causally
ordered (see 11.2.3), then the messages must be
delivered to any receiver in their causal order. More precisely, if
the sending of m1 happened before the sending of m2, then
m2 may not be delivered to a correct process q unless m1 has
been first delivered to q. FIFO is a special case of causal
broadcast.

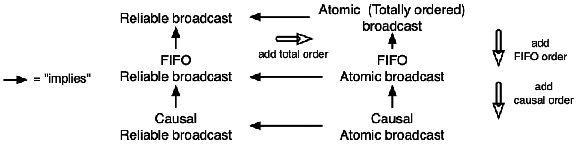

These requirements are orthogonal to those of reliability and
atomicity, which leads to the main six forms of broadcast summarized
on Figure 11.4.
An additional requirement, again orthogonal to the previous ones, is
uniformity. In a uniform broadcast, we are also interested in
the behavior of faulty processes. For example, reliable uniform
broadcast is specified as follows: if a message m is delivered to a
(correct or faulty) process, then it must be delivered to all correct
processes. The motivation behind this requirement is that the delivery
of a message may trigger an irreversible action, and a process may get
a message and perform that action before failing.
The above specification assume that the group of processes is static,
i.e., processes cannot join or leave the group (they may only crash).
The specification may be extended to dynamic groups
[Schiper 2006a], using the group membership service defined
below.
Group membership protocols
Recall that a group (in the present context) is a set of processes,
the members of the group, together with an API for communication and
membership. We now assume that the composition of the group changes
over time: members may leave the group, or fail; new processes can
join the group, and failed processes can be repaired and join the
group again. The aim of group membership protocols is to implement the
join and leave operations, and to keep the members of the group
informed about the current membership, by delivering a sequence of
views.
There are two versions of group membership protocols. The
primary partition version assumes that the sequence of views is
totally ordered. This is the case if the process group remains
connected (i.e., all its members can communicate with each other), or
if one only considers a single partition in a disconnected group. In the
partitionable version, the sequence of views is partially
ordered. This applies to a partitioned group, in which several
partitions are taken into account. We only consider the primary
partition version.
As mentioned above, writing precise and consistent group membership
protocol specifications is a surprisingly difficult task.
Recall (1.4.1
) that the
required properties are categorized into safety (informally: no
undesirable event or condition will ever occur) and liveness
(informally: a desirable event or condition will eventually occur).
These requirements are summarized as follows (see [Chockler et al. 2001]
for formal statements).
Recall that the group membership service delivers views to the members
of the group. A view is a list of processes that the service considers
to be current members of the group. When a view v is delivered to
process p, p is said to install the view.
The safety properties include:
Validity. A process which installs a view is part of that view
(self-inclusion property).
Total order. The set of views installed by the processes is
totally ordered (thus one may speak of the next view, of consecutive
views, etc.).
Initial view. There exists an initial view, whose members are
explicitly defined.
Agreement. The sequence of views installed by a process is a
subsequence of contiguous elements of the global sequence of
views (consistency property).
Justification. A change of view (installing a new view) must be
motivated by one of the following events: a process has joined the
group, left the group, or failed.
State transfer. The state of the group (i.e., the contents of a
view) may be transferred to the next view in the sequence, except if
all processes have failed. "State transfer" means that at least
one process that installed the new view was included in the
predecessor of that view.
Liveness is defined by the following property: any event associated
with a given process (join, leave, or failure) will eventually
be visible in a further view (except if a process fails after
joining, in which case it may never install a view).
A recent proposal [Schiper and Toueg 2006] suggests to consider
group membership as a special case of a more general problem,
set membership, in which the processes of the group may add
or remove elements of a set, and need to agree on the current
composition of the set. The members of the set are drawn from
an arbitrary universe. Group membership is the special case in
which the members of the set are processes. This approach favors
separation of concerns (1.4.2
), by identifying two separate issues: determining the set of processes
that are deemed to be operational, and ensuring agreement over the
successive values of that set. Different algorithms are needed to
solve these two problems.
Virtual synchrony
One important aspect of group protocols is the connection between
group membership and communication through the notion of virtual
synchrony, first introduced in [Birman and Joseph 1987]. Virtual
synchrony defines a broadcast protocol (view synchronous broadcast)
that is consistent with group membership, as implemented by the view
mechanism.
The specification of view synchronous broadcast extends the agreement
condition defined for group membership. The extended conditions are as
follows.
Agreement for view synchronous communication. Two properties
hold:
The (correct) members of the process group install the same
sequence of totally ordered views of the group.
The (correct) members of the process group see the same sequence
of delivered messages between the installation of a view vi and
that of the next view vi+1.
Justification for view synchronous communication: any message
delivered has actually been sent by some process .
Liveness for view synchronous communication: any message sent
by a correct process is eventually delivered.

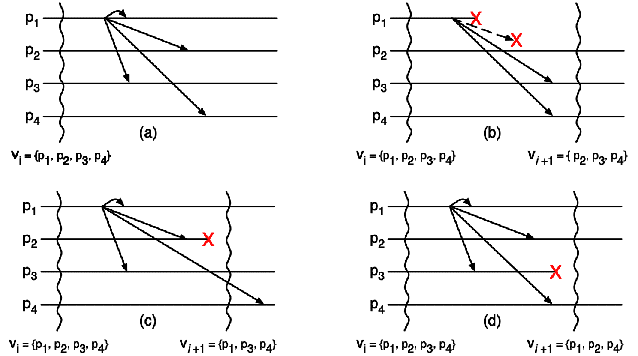

These conditions are illustrated by the examples shown in Figure
11.5. In all cases, process p1 broadcasts a
message to a group including itself and p2, p3, p4, all alive
in view vi. In case (a), there is no view change, and the system
behaves correctly. In case (b), p1 crashes during broadcast, and
the message is delivered to p3 and p4 but not to p2. This
violates virtual synchrony, since the surviving processes in view
vi+1 have not received the same set of messages. This also
happens in case (c), for a different reason: although the message
eventually gets to p4, it is only delivered after p4 has
installed the new view; p4 is inconsistent in the meantime.
Finally, virtual synchrony is respected in case (d), since the
surviving processes in view vi+1 have received the same set of
messages when the view is installed.
Figure 11.5: Virtual synchrony
One common use of virtual synchrony is illustrated by the example of a
replicated database. Each replica is under the control of a manager
process, and updates are (atomically) broadcast to all managers. If
this broadcast does not respect virtual synchrony, one ore more
replica(s) will become inconsistent after a view change following the
crash of one of the managers. Virtual synchrony ensures that a reader
can consult any of the replicas; it may get an out of date version
(one that has not yet received the last update), but not an
inconsistent one. Data replication is discussed in more detail in
11.7. Another application of virtual synchrony
(fault tolerant servers) is presented in 11.6.2.
There is a close relationship between group membership and group communication.
Actually, each of these services can be implemented on top of the other one.
In most usual implementations, the group membership layer lies beneath the
group communication protocol stacks. In [Schiper 2006a], a different
approach is proposed, in which atomic broadcast is the basic layer, and
group membership is implemented above this layer. The claimed advantage is
simplicity, and better efficiency in most practical situations.
Both group membership and atomic broadcast can be expressed in terms of
an agreement protocol, consensus, which we now examine.
Consensus is a basic mechanism for achieving agreement among a
set of processes. It can be shown that both the total order broadcast
and the virtually synchronous group membership protocols are
equivalent to consensus. The specifications and implementations of
consensus therefore play a central role in the understanding of fault
tolerant distributed algorithms. It has been proposed
[Guerraoui and Schiper 2001] that a generic consensus service be provided
as a base for building group membership and group communication
protocols.
Consensus Specification
Given a set of processes {pi} linked by a communication system,
consensus is specified as follows. Initially, each process pi
proposes a value vi. If the algorithm terminates, each process
pi decides a value di. The following conditions must hold:
Agreement. No two correct processes decide different
values.
Integrity. Each process decides at most once (i.e., if it
decides, the decision may not be modified).
Validity. A decided value must be one of those proposed
(this condition eliminates trivial solutions, in which the processes
decide some predetermined value).
Termination. If at least one correct process starts the
algorithm, all correct processes decide in finite time.
A process is correct if it does not fail.
Solving consensus in the absence of failures is a simple task. It may
be done in two ways, corresponding to the patterns identified in
11.3.1.
One process is defined as the coordinator (or primary).
On the primary's request, each process sends its proposed value
to the primary. After it has received all values, the
primary chooses one of them as the decided value, and sends it
to all processes. When it receives a value from the primary,
each process decides that value.
Each process sends its proposed value to every process
(including itself). Once a process has received proposed values from
all the pis, it applies a deterministic decision algorithm (the
same one for all processes) to choose a value among those received,
and it decides that value.
In both cases, if we assume reliable communication, the algorithm
terminates. This is true even if communication is asynchronous,
although the termination time is not bounded in that case.
The two above approaches are the base of the algorithms used to solve
consensus in the presence of failures. In that case, achieving
consensus becomes much more complex, and in many cases intractable, as
discussed below.
We now present (without proof) a few important
results on the tractability of the problems associated with group
protocols. The main impossibility results concern asynchronous systems
and are linked to the impossibility of "perfect" failure detection
in such systems. We then discuss the main approaches to the solution
of agreement problems, which are the base of group protocols.
Limits of Group Protocol Algorithms
Reliable broadcast can be implemented in an asynchronous system, using
a "flooding" algorithm. When a process receives a message, it
transmits the message to all its neighbors (the processes to which it
is connected by a direct link), and then delivers the message to
itself. To broadcast a message, the sender sends it to itself, and
follows the above rule. This algorithm implements the specification
of reliable broadcast; in addition, it is uniform, i.e., if
a message is delivered to a (correct or faulty) process, then it
is delivered to all correct processes. Uniformity is guaranteed by the
fact that a process delivers a message to itself only after having
sent it to its neighbors. Since the system is asynchronous, there is no
upper bound on the delivery time of a message.
This algorithm can be extended to achieve FIFO and causal reliable
broadcast [Hadzilacos and Toueg 1993].
The central impossibility result, often known as FLP from its authors'
names Fischer, Lynch, and Paterson [Fischer et al. 1985], is the following: in
an asynchronous system, there is no deterministic algorithm that
achieves consensus in finite time if one process (at least) may fail.
Recall the assumptions: the failure mode is fail-stop, and
communication is reliable. This impossibility extends to totally
ordered broadcast and to view-synchronous group membership, since
these algorithms are equivalent to consensus.
With the same assumptions, it has been demonstrated
[Chandra et al. 1996b] that group membership cannot be solved in
an asynchronous system.
How to live with these limitations? Three main tracks have been
explored.
Use randomization. The FLP result only applies to deterministic
algorithms. Randomized algorithms have been devised to achieve
consensus in an asynchronous system (see a review in
[Aspnes 2003]).
Relax the asynchrony assumption. Various forms of "partial
synchrony" have been investigated [Dwork et al. 1988]. We
use that specified in 11.1.4.
Use an imperfect algorithm, i.e., one that may fail, but which
is the best possible in some sense. Two main approaches have been
proposed: the Paxos algorithm, and unreliable failure detectors. They
are examined below.
Most practical approaches to group protocols combine the use of one of the
above algorithms and a partial synchrony assumption. They
are discussed in Section 11.4.
The Paxos consensus protocol
The first approach to solving consensus is known as the Paxos
protocol. The failure hypotheses are weaker than indicated above:
the network may lose messages, and the processes may fail by crashing,
and subsequently recover. Paxos was introduced in
[Lamport 1998]; an equivalent protocol was included
in the replicated storage system of [Oki and Liskov 1988].
A pedagogical description may be found in
[Lampson 2001].
The protocol works roughly as follows. The system goes through a
sequence of views. A view defines a period during which one
selected process, the primary, attempts to achieve agreement (using
the same principle as the primary-based algorithm described in
11.3.2 in the absence of failures). After a view is
started as the result of a view change, the protocol works in two
phases. In the first phase, the primary queries the participants for
their state (i.e., their replies in past views). Then the primary
selects an "acceptable" value (in a sense defined later), and
proposes that value5. If a majority agrees on that value, consensus is
achieved, and the decision is propagated to the participants. Thus
the protocol succeeds if the primary and a majority of processes live
for a sufficiently long time to allow two and a half rounds of
exchanges between the primary and the other processes. If either a
majority cannot be gathered or the primary fails before agreement is
reached or progress is "too slow", a new primary is
elected6, and a new view is started. The view
change protocol is the choice of a new primary, followed by the first
phase described above. The "normal" protocol achieves safety
(agreement on a value), while the view change protocol guarantees
liveness (i.e., progression).
Figure 11.6: The Paxos consensus protocol
Paxos does not require that a single primary should be present at
a time. Several views (and therefore several primaries) may
coexist, depending on how the election process was started upon
detecting failure to agree. However, Paxos imposes a total order on
views, allowing processes to reject the values proposed by any
primary that is not in the most recent view. A key point is that Paxos
restricts the primary's choice of acceptable values: if a majority
has once agreed on a value in some view (and a decision has not been
reached in that view because of failures), only that value may be
proposed in subsequent views. This stability property ensures that
no two different values may be decided, a safety property.
The actual working of Paxos is much more subtle than shown in the
above rough description (see references above). In addition, a number
of optimizations may be made, which complexify the description. Paxos
is not guaranteed to ensure agreement in finite time (since FLP still
holds), but it is extremely robust in the presence of failures and
unknown delays.
One practical use of Paxos is consistency management in replicated
storage systems (11.7). See [Oki and Liskov 1988]
for an early application, and [Chandra et al. 2007] for a recent one.
Unreliable failure detectors
The idea of unreliable failure detectors
[Chandra and Toueg 1996] is based on the following intuitive
remark: the intractability of consensus in asynchronous systems is
linked to the impossibility of telling a faulty process from a slow
one, i.e., to the impossibility of building a "perfect" failure
detector. This leads to the following questions: (i) what are the
properties of a perfect failure detector? and (ii) is consensus
solvable with an "imperfect" failure detector, and, if so, what
properties are required from such a detector?
A failure detector is a device that can be used as an oracle: it
delivers upon request the list of processes that it suspects of being
faulty. In a distributed system, a failure detector is itself a
distributed program, made up of cooperating components, one on each
site. To use the detector, a process consults the local failure
detector component.
Two properties have been identified for a perfect failure
detector: strong completeness, i.e., every
faulty process is eventually suspected by every correct process; and
strong accuracy, i.e., no correct process is ever suspected by
any correct process. Thus, there is a time after which the list
delivered by a perfect detector contains all the faulty processes, and
only those processes.
These properties can be weakened7,
allowing several classes of imperfect (or unreliable) detectors to be
defined. Weak accuracy means that some correct process is never
suspected by any correct process. Both strong and weak accuracy may
be eventual; in that case, there exists a time after which the
indicated property holds.
One may then define the following classes8
of detectors by their properties:
Eventually Perfect (àP): strong completeness,
eventually strong accuracy.
Eventually Strong (àS): strong completeness,
eventually weak accuracy.
The detectors other than P are unreliable, i.e., they can make false
suspicions.
The most important result [Chandra and Toueg 1996] is the
following: in an asynchronous system with fail-stop failures,
consensus can be solved using a detector in any of the classes P, S, àP, àS. Moreover [Chandra et al. 1996a], àS
is the weakest detector allowing consensus.
More precisely, the solutions to the consensus problem among n
processes, using failure detectors, have the following properties.
With P: allows up to n - 1 failures, needs f + 1 rounds,
where f is the number of failures tolerated.
With S: allows up to n - 1 failures, needs n rounds.
With àS: allows up to én/2ù- 1 failures,
needs a finite (but unbounded) number of rounds.
The consensus algorithm for a àS detector is based on the
principle of the rotating coordinator. The coordinator tries to
achieve agreement among a majority of processes, based on the proposed
values. This may fail, because the coordinator may be falsely
suspected or may crash. The function of coordinator rotates among the
processes. Eventually (as guaranteed by the properties of àS), a correct process that is never suspected will become
coordinator, and will achieve agreement, provided that a majority of
correct processes exists.
None of the above detectors may be implemented in an asynchronous
system by a deterministic algorithm (if this were the case, it would
contradict the FLP result). Implementations under a partial synchrony
assumption are described in 11.4.1.
Paxos and unreliable failure detectors are two different approaches to
solving consensus. A detailed comparison of these approaches is still
an open issue. The interest of Paxos is that it ensures a high degree
of tolerance to failures, (including message loss), and that it may be
extended to Byzantine failures. The interest of unreliable failure
detectors is that they allow a deep understanding of the origins of
the difficulty of achieving consensus, and that they provide
guidelines for actual implementations (see 11.4.1).
In this section, we examine the actual implementation of group
protocols. We start by discussing implementation issues for failure
detectors (11.4.1). We then look at atomic
broadcast (11.4.2) and group membership
(11.4.3). We conclude with a discussion of
group protocols for large scale systems (11.4.4).
We first present the basic assumptions and mechanisms that underlie the
implementations of failure detectors. We then discuss the quality
factors of these detectors, and conclude with a few practical
considerations.
Basic Mechanisms of Failure Detection
Recall (11.3.3) that none of the failure detectors P,
S, àP, àS may be implemented by a deterministic
algorithm in an asynchronous system. The approach usually taken in
practice is to relax the asynchrony assumption, by considering a
particular form of partial synchrony: assume that bounds exist
for the message transmission time and for the speed ratio between
processes, but that these bounds are unknown a priori, and hold
only after a certain time. This assumption is realistic enough in
most common situations, and it allows the use of timeouts for
implementing failure detectors. Recall that the failure model for
processes is fail-stop, without recovery.
Failure detection relies on an elementary mechanism that allows a
process q to determine if a process p is correct or faulty,
assuming an estimated upper bound Dp,q is known for the
transmission time9 of a message between p and q. Two
variants of this mechanism have been proposed (Figure
11.7).
Pull, also called ping. Process q periodically
sends a request "are you alive?" to process p, which answers with
a message "I am alive". If no answer is received after 2D p,q, q suspects p of having crashed.
Push, also called heartbeat. Process p
periodically sends to q (and possibly to other processes) a
message "I am alive". Assume that p and q have synchronized
clocks, and that q knows the times ti at which p sends its
message. If, for some i, q has not received the heartbeat
message from p by time ti + Dp,q, q suspects p of
having crashed.
Figure 11.7: Principle of ping and heartbeat
The above description only gives the general principle, and various
details need to be filled in. In particular, how is Dp,q
estimated? One common technique is to dynamically determine successive
approximations to this upper bound for each process, by starting with
a preset initial value. If the value is found to be too small (because
a heartbeat message arrives after the deadline), it is increased (and
the falsely suspected process is removed from the suspects' list).
With the partial synchrony assumption, this technique ensures
convergence towards the eventual upper bound.
Another important design choice for a failure detection algorithms is
the communication pattern between the processes. Two main patterns have
been considered.
Complete exchange (or all-to-all communication). Every process
communicates with every other one. For n processes, the number of
messages is thus of the order of n2 per run (more precisely nC,
where C is the number of faulty processes in the considered run).
Exchange over a logical (or virtual) ring. Each process only
communicates with some10 of his successors or predecessors on the ring.
The number of messages is now linear in n.
In addition, hierarchical patterns (with separate intra-group and
inter-group communication) have been introduced for large scale
systems (see 11.4.4).
Various combinations of the design choices indicated above (ping or heartbeat,
determining the starting point for the watchdog timers, estimating
an upper bound for the communication delay, choosing a communication
pattern) have been proposed. A summary of some proposals follows.
In their seminal paper on unreliable failure detectors,
[Chandra and Toueg 1996] propose an implementation of a failure
detector àP, assuming partial synchrony (as specified at the
beginning of this section). This implementation uses heartbeat,
all-to-all communication, and adaptive adjustment of the transmission
time bound, as described above. The main drawback of this
implementation is its high communication cost (quadratic in the
number of processes).
To reduce the number of messages, [Larrea et al. 2004] propose
implementations of àP and àS using a logical ring,
a ping scheme for failure detection, and again an adaptive adjustment
of the transmission time bound. Each process q monitors (i.e.,
"pings") a process p, called the "target" of q; initially,
this target is succ(q), the successor of q on the ring. If q
suspects p, it adds it to its suspects lists, and its new target
becomes succ(p); if q stops suspecting a process r, it also
stops suspecting all processes between r and its current target, and
r becomes its new target. The drawback of this algorithm is that
each process only maintains a "local" (partial) suspects list. To
build the global list (the union of all local lists), each local list
needs to be broadcast to all processes. While this transmission may be
optimized by piggybacking the local list on top of ping messages, this
delays the detection, by a process q, of faulty processes outside
q's own local list. Several variations of this scheme, still based
on a logical ring but using heartbeat instead of ping, are proposed in
[Larrea et al. 2007].
[Mostefaoui et al. 2003] take a different approach, by changing
the assumptions on the communication system. They do not assume partial
synchrony, but introduce assumptions involving an upper bound f
on the number of faulty processes. These assumptions amount to
saying that there is at least one correct process that can monitor
some process (i.e., receive responses to its ping messages to
that process).
There does not appear to exist a "best" failure detector, due to the
wide range of situations, and to the variety of cost and quality
metrics. The quality metrics are discussed below.
Quality Factors of Failure Detectors
A comprehensive investigation of the quality of service (QoS) factors of failure detectors
is presented in [Chen et al. 2002]. This work was motivated by the following remarks:
The properties of failure detectors (11.3.3) are
specified as eventual. While this quality ensures long term
convergence, it is inappropriate for applications that have timing
constraints. The speed of detection is a relevant factor in
such situations.
By their nature, unreliable failure detectors make false
suspicions. In practical situations, one may need a good
accuracy (reducing the frequency and duration of such
mistakes).
[Chen et al. 2002] propose three primary QoS metrics for failure
detectors. The first one is related to speed, while the other two are
related to accuracy. They also define additional quality metrics,
which may be derived from the three primary ones.
The primary metrics are defined as follows, in the context described
at the beginning of 11.4.1, i.e., a system composed
of two processes p and q, in which q monitors the behavior of
p, and q does not crash (we only give informal definitions; refer to
the original paper for precise specification).
Detection time. This is the time elapsed between p's crash and
the instant when q starts suspecting p permanently.
Mistake recurrence time. This is the time between two
consecutive mistakes (a mistake occurs when q starts falsely
suspecting p). This is analogous to the notion of MTTF as
defined in 11.1.1 (although the "failure" here is a
faulty behavior of the detector).
Mistake duration. This is the time that it takes to the failure
detector to correct a mistake, i.e., to cease falsely suspecting a
correct process. This is analogous to the notion of MTTR as
defined in 11.1.1.
Since the behavior of the system is probabilistic, the above factors
are random variables. More precisely, they are defined by assuming the
system has reached a steady state, i.e., a state in which the
influence of the initial conditions has disappeared11. Note that these metrics are implementation-independent:
they do not refer to a specific mechanism for failure detection.
[Chen et al. 2002] present a heartbeat-based algorithm, and show
that it can be configured to reach a specified QoS (as defined by the
above primary factors), if the behavior of the communication system is
known in terms of probability distributions for message loss and
transmission time. The algorithm makes a best effort to satisfy the
QoS requirements, and detects situations in which these requirements
cannot be met. Configuration consists in choosing values for the
two parameters of the detector: h, the time between two
successive heartbeats, and d, the time shift between the
instants at which p sends heartbeats and the latest
instants12 at which
q expects to receive them before starting to suspect p. If the
behavior of the communication system varies over time, the algorithm
may be made adaptive by periodically reevaluating the probability
distributions and re-executing the configuration algorithm.
Concluding Remarks
The results discussed above rely on several assumptions. Are
these assumptions valid in practice?
Concerning the partial synchrony assumption, observation shows that a
common behavior for a communication system alternates between
long "stable" phases, in which there is a known upper bound for
transmission times, and shorter "unstable" phases, in which transmission
times are erratic. This behavior is captured by the partial synchrony
model, since an upper bound for the transmission time eventually holds
at the end of an unstable phase.
Concerning reliable communication, the "no message loss"
assumption is justified for LANs and WANs, in which
message retransmission is implemented in the lower layer protocols.
It is questionable in mobile wireless networks.
Concerning the fail-stop failure model, the assumption of crash
without recovery is overly restrictive. In practice, failed components
(hardware or software) are repaired after a failure and reinserted
into the system. This behavior can be represented in two ways.
Using dynamic groups. A recovered component (represented by a process) can
join the group under a new identity.
Extending the failure model. A crash failure model with recovery has
been investigated in [Aguilera et al. 2000].
In all cases, recovery protocols assume that a form of reliable
storage is available.
Concerning the basic failure detection mechanisms, both heartbeat and
ping are used, since they correspond to different tradeoffs between
efficiency (in terms of number of messages) and accuracy. Heartbeat
seems to be the most common technique. Since ping uses more messages,
it is usually associated with a specific organization of the
interprocess links, such as a tree or a ring, which reduces the
connectivity.
A large number of atomic broadcast and multicast algorithms have been published.
[Défago et al. 2004] give an extensive survey of these algorithms
and propose a taxonomy based on the selection of the entity used to
build the order. They identify five classes, as follows.
Fixed sequencer. The order is determined by a predefined
process, the sequencer, which receives the messages to be broadcast
and resends them to the destination processes, together with a
sequence number. The messages are delivered in the order of the
sequence numbers. This algorithm is simple, but the sequencer is a
bottleneck and a single point of failure.
Moving sequencer. Same as above, but the role of sequencer
rotates among the processes. The advantage is to share the load
among several processes, at the price of increased complexity.
Privilege-based. This class of algorithms is inspired by the
mutual exclusion technique using a privilege in the form of a token,
which circulates among the processes. A process can only broadcast
a message when it holds the token. To ensure message ordering, the
token holds the sequence number of the next message to be broadcast.
This technique is not well suited for dynamic groups, since
inserting or removing a process involves a restructuring of the
circulating pattern of the token. Also, special care is needed to
ensure fairness (such as specifying a limit to the time that a
process holds the token).
Communication History. The delivery order is determined
by the senders, but is implemented by delaying message delivery at
the destination processes. Two methods may be used to determine the
order: causal time-stamping, using a total order based on the causal
order, and deterministic merge of the message streams coming from
each process, each message being independently (i.e., non causally)
timestamped by its sender.
Destinations Agreement. The delivery order is determined
through an agreement protocol between the destination processes. Here
again, there are several variants. One variant uses a sequence of consensus
runs to reach agreement over the sequence of messages to be delivered.
Another variant uses two rounds of time-stamping: a local time-stamp is
attached to each message upon receipt, and a global time-stamp is
determined as the maximum of all local timestamps, thus ensuring
unique ordering (ties between equal timestamps are resolved using
process numbers).
In addition, [Défago et al. 2004] describe a few algorithms that
are hybrid, i.e., that mix techniques from more than one of the above
classes.
Two delicate issues are (i) the techniques used to make the algorithms
fault-tolerant; and (ii) the performance evaluation of the algorithms.
This latter aspect often relies on local optimization (e.g., using
piggybacking to reduce the number of messages, or exploiting the fact
that, on a LAN, messages are most often received in the same order by
all processes). Therefore, the algorithms are difficult to compare with
respect to performance.
Regarding fault tolerance, two aspects need to be considered:
failures of the communication system, and failures of the processes.
Many algorithms assume a reliable communication system. Some
algorithms tolerate message loss, using either positive or negative
acknowledgments. For example, in a fixed sequencer algorithm, a
receiving process can detect a "hole" in the sequence numbers, and
request the missing messages from the sequencer. As a consequence, the
sequencer needs to keep a copy of a message until it knows that the
message has been delivered everywhere.
Concerning process failures, most of the proposed algorithms rely on a
group membership service, itself based on a failure detector. Others
directly use a failure detector, either explicitly, or implicitly through
a consensus service. The relationship between atomic broadcast,
group membership and consensus is briefly discussed in the next section.
11.4.3 Implementing Virtually Synchronous Group Membership
There are three main approaches to group membership implementation.
Implementing group membership over a failure detector (itself
implemented by one of the techniques described in
11.4.1). This is the most common approach. An
example using it is described below.
Implementing group membership over atomic broadcast (itself
implemented by one of the techniques described in
11.4.2). [Schiper 2006a] gives arguments
in favor of this approach.
Implementing both atomic broadcast and group membership over a
consensus service (itself usually based on a failure detector). See
[Guerraoui and Schiper 2001].
We illustrate the first approach (using a failure detector to
implement virtual synchronous group membership) with the example of
JavaGroups [Ban 1998], itself derived from the Ensemble
protocol stack [van Renesse et al. 1998]. The protocol uses the
coordinator pattern and is based on the notion of stable messages. A
message is said to be stable when it is known to having been
delivered to every member of the current view of the group. Otherwise,
it is unstable13.
A view change is triggered by one of the following events
(11.3.2): a process joins the group, leaves the group,
or crashes (this latter event is observed by a failure detector). The
coordinator is notified when any of these events occurs. It then
initiates a view change by broadcasting a FLUSH message to
the group. When a process receives the FLUSH message, it
stops sending messages (until it has installed the new view), and
sends all the messages it knows to be unstable to the coordinator,
followed by a FLUSH_OK message. When it has received all
FLUSH_OK replies, the coordinator broadcasts all the
unstable messages (messages are uniquely identified within a view, by
a sequence number, to avoid duplicates). Recall that the underlying
communication system is reliable, so that the messages will reach
their destination if the sender is correct. When all messages have
become stable, the coordinator broadcasts a VIEW message,
which contains the list of the members of the new view. When a process
receives this message, it installs the new view.
In order to detect failures, the processes are organized in a logical
ring, and each process pings its successor (as described in
11.4.1). If a process (other than the coordinator)
crashes during this view change protocol, a notification is sent to
the coordinator, which starts a new view change. If the coordinator
crashes, its predecessor in the ring (which detected the crash)
becomes the new coordinator, and starts a new view change.
The reliable message transmission layer uses both a positive
( ACK) and negative ( NAK) acknowledgment mechanism.
Negative acknowledgment is based on the sequential numbering of
messages, and is used when the received sequence number differs from
the expected one. For efficiency, the default mode is NAK for
ordinary messages. The ACK mode is used for sending view
changes (the VIEW message).
This protocol does not scale well (the group size is typically limited
to a few tens of processes). A hierarchical structure based on a
spanning tree allows a better scalability. The processes are
partitioned into local groups; in each local group, a local
coordinator (the group controller) broadcasts the flush and view
messages within the group. The controllers cooperate to ensure global
message diffusion. This allows efficient communication for groups of
several hundred processes.
Other communication toolkits include Appia [Appia ] and Spread
[Spread ].
In this section and the next one, we examine how available systems can
be built using replication. This section deals with available
services, while section 11.7 discusses available
data. Both cases involve replicated entities, which raises the issue
of keeping these entities mutually consistent. We examine consistency
conditions in 11.6.1.
Recall (2.1
) that a service is a contractually defined behavior, implemented by a
component and used by other components. In the context of this
discussion, we use the term server to designate the component
that implements a service (specified by its provided interface),
together with the site on which it runs. Making a service highly
available is achieved by replicating the server.
Two main approaches are used, corresponding to the two patterns
identified in 11.3.1, assuming fail-stop failures: the primary-backup protocol
(11.6.2) and the active replication protocol
(11.6.3). These protocols are discussed in detail
in [Guerraoui and Schiper 1997].
The case of Byzantine failures is the subject of 11.6.4.
11.6.1 Consistency Conditions for Replicated Objects
Defining consistency conditions for replicated data is a special case
of the more general problem of defining consistency for concurrently
accessed data. This problem has been studied in many contexts, from
cache coherence in multiprocessors to transactions. Defining a
consistency condition implies a trade-off between strong guarantees
and efficient implementation. Therefore, a number of consistency
models have been proposed, with different degrees of strictness.
Consider a set of shared data that may be concurrently accessed by a
set of processes, which perform operations on the data.
Operations may be defined in different ways, according to te
application context. In a shared memory, operations are elementary
reads and writes. In a database system, operations are transactions
(see Chapter 9
). In a (synchronous) client-server system (see Chapter
5
), an operation, as viewed by the server, starts when the server
receives a client's request, and
ends when the server sends the corresponding reply to the client.
A commonly used consistency requirement for concurrently accessed data
is sequential consistency [Lamport 1979], which specifies
that a set of operations, concurrently executed by the processes, has
the same effect as if the operations had been executed in some
sequential order, compatible with the order seen at each individual
process. In the context of transactions, this requirement is usually
called serializability
(9.2.1
).
A stronger requirement, known as linearizability
[Herlihy and Wing 1990], is used for shared objects. A shared object
may be seen as a server that receives requests from client processes
to perform operations. A partial order is defined on the operations,
as follows: operation O1 precedes operation O2 (on the server)
if the sending of the result of O1 precedes the receipt of the
request of O2. An execution history (a sequence of operations on
the object) is said to be linearizable if (i) it is equivalent to a
legal sequential execution (legal means "satisfying the specification
of the object"); and (ii) the sequential order of the operations is
compatible with their ordering in the initial history.
Linearizability thus extends sequential consistency, specified by
condition (i). Intuitively, linearizability may be interpreted as
follows: each operation appears to take effect instantaneously, at
some point in time between its invocation and its termination; and the
order of operations respects their "real time" order.
Linearizability thus appears to be more intuitive that sequential
consistency, since it preserves the order of (non overlapping)
operations. In addition, contrary to sequential consistency, it has a
compositional property (a combination of separate linearizable
implementations of objects is linearizable).
When dealing with replicated data, the above requirements are
transposed as follows. The requirement corresponding to sequential
consistency is one-copy serializability (1SR). This concept,
introduced in database systems [Bernstein et al. 1987], captures two notions: (i)
replication is invisible to the clients, thus maintaining the illusion
that there exists a single (virtual) copy of a replicated object; and
(ii) the operations performed on these virtual copies (actually
implemented by operations on replicas) are sequentially consistent.
Linearizability is likewise extended to replicated objects (in
addition to one-copy serializability, the order in which the
operations appear to be executed is compatible with the global
ordering of operations).
The above criteria define strong consistency, in the sense that
they maintain the illusion of a single object.
In weak consistency, by contrast, individual replicas are
considered, and they may diverge, with some specified restrictions.
Conflicts appear if these restrictions run the risk of been violated.
Conflicts must be resolved (e.g., by preventing or by delaying an
operation, etc.). The usual weak consistency condition is
eventual convergence, also called uniformity: if no
operations are performed after a certain time, all replicas must
eventually converge to be identical.
Consider a service implemented by a set of replicated servers, following
either of the patterns described in 11.3.1. Then a
sufficient condition for linearizability is that (i) if a request
is delivered to one correct replica, it must be delivered to all correct
replicas; and (ii) if two requests are delivered to two correct replicas,
they must be executed in the same order on both. Two schemes satisfying
this condition are described in the next two subsections.
In the primary-backup scheme, all requests are sent to the primary,
whose identity is known to the clients. In normal operation (i.e., if
the primary is up), a request is processed as follows (Figure
11.8):
The primary executes the request, yielding a reply r and a new state S.
The primary multicasts r and S to all the backups. Each
correct backup changes its state to S, stores r, and replies to
the primary with an ACK message.
The primary waits for all the ACKs issued by the
backups that it knows to be correct. It then sends the reply to the
client, and waits for the next request.
Each request, and the corresponding reply, is uniquely identified by
the client's identity and a unique sequence number for that client.
This scheme satisfies the linearizability condition, since a total
ordering of the requests is imposed by the primary, and this order is
followed by the backups14.
We now examine the case of failure. If a backup fails, there is
nothing to be done, except that the primary needs to be informed of
the failure (this is imposed by step 3 above: the primary does not
wait for an ACK from a failed backup).
If the primary fails, a new primary must be selected among the
backups, and its identity should be make known to both the clients and
the remaining backups. The simplest arrangement is to specify a fixed
(circular) ordering among all replicas. The new primary is the first
correct replica that follows the failed primary in this ordering,
which is known to both the servers and the clients. A client detects
the failure of the primary by means of a timeout.
The key point of the recovery protocol is to ensure that the new primary
can start operating with no request loss or duplication. The action to
perform depends on the precise stage at which the failure occurred.
If the primary failed before multicasting the reply and new
state of a request, no backup is aware of the request. Eventually,
the client will time out, and resend the request to the new primary.
If the primary failed after the multicast, but before sending
the reply to the client, the new primary will have updated its
state; after the view change, it will be aware of its new role and
it will send the stored reply to the client.
If the primary failed after having sent the reply, the client
will receive a duplicated reply from the new primary. It will detect
the duplication through the unique identification, and ignore the
redundant reply.
A virtually synchronous group membership protocol answers all the
demands of the above protocol. The primary uses reliable, view
synchronous multicast to send the request and new state to the
backups. This guarantees that there is no intermediate situation
between the cases 1 and 2 of the recovery protocol (i.e., all the
correct backups get the message, or none). A view change is triggered
by the failure of a replica (including the primary). Thus the primary
knows which backups it should expect an ACK from, while each backup
knows the new primary after a failure of the current one.
When a failed replica is reinserted after repair, it triggers a view
change and takes the role of a backup. Before it can actually act in
that role (i.e., be able to become a primary), it needs to update its
state, by querying another correct backup. In the meantime, any
incoming messages from the primary should be batched for further
processing.
The primary-backup replication scheme resists to n - 1 failures if
there are n replicas (primary included). If n = 2 (single backup),
a frequent case, the protocol is simplified: there is no need to wait
for an ACK from the backup, and the primary sends the reply
to both the client and the backup as soon as the work is done.
This case was described in [Alsberg and Day 1976].
An early application of primary-backup replication is the process pair
mechanism [Bartlett 1981] used in the Tandem NonStop system,
a highly available computer system [Bartlett and Spainhower 2004]. A (logical)
process is implemented by a pair of processes (the primary and the
backup), running on different processors. A request directed to the
logical process goes through a redirection table, which sends it to the
process that is the current primary. After completion of a request,
the primary commands the backup to checkpoint the request and the
process state. When the primary (or its processor) fails, the backup
process takes over, and the redirection table is updated. When the
failed primary recovers, it becomes the backup.
Active server replication follows the replicated state machine
approach described in 11.3.1. A client sends its request
to all the replicas, which have the same status. Each (correct)
replica does the required work and sends the reply to the client. The
client accepts the first reply that it gets, and discards the others,
which are redundant. The client is not aware of any failures as long
as at least one replica is up; thus, like primary-backup, active
replication with n servers resists to n-1 failures.
As noted in 11.3.1, the requests need to be processed
in the same order on all replicas, if the execution of a request
modifies the state of the server. Therefore the client needs to use
totally ordered (atomic) multicast to send its requests.
When a failed replica is reinserted after repair, it needs to update
its state. To do so, it atomically multicasts a query for state to the
group of replicas (including itself), and uses the first reply to
restore its state. Atomic multicast ensures total order between
requests for state and client requests. Thus all queried replicas
reply with the same value of the state, and the reinserted replica,
R, does not lose or duplicate requests, by using the following
procedure. Let t be the instant at which R receives its own query
for state. Client requests received by R before t are discarded;
requests received between t and the first receipt of the state are
batched for further processing.
We now compare the primary-backup and active replication approaches.
The main points to note are the following.
Active replication consumes more resources, since the servers
are dedicated to the processing of the requests. With the
primary-backup scheme, backups may be used for low-priority jobs.
Active replication has no additional latency in the case of
failures, since there is no recovery protocol. In contrast, the view
synchronous failure detection mechanism used in the primary-backup
scheme may suffer from false failure detections, which add latency.
Active replication is transparent for the clients, as long as
one server is up. In contrast, clients need to detect the failure of
the primary.
Active replication, being based on the replicated state machine
model, implies that the replicated servers behave in a deterministic
way. There is no such constraint for the primary-backup scheme.
Primary-backup uses view-synchronous group membership, while
active replication uses totally ordered broadcast. In an
asynchronous system with fail-stop failures, both communication
protocols are equivalent to consensus. Thus the algorithmic
difficulty is the same for both replication schemes.
The standard server replication scheme is primary-backup. Active
replication is used in critical environments, when low latency and
minimal client involvement are required.
11.6.4 Byzantine Fault Tolerance for Replicated Services
In the Byzantine failure mode, the failed component may have an
arbitrary behavior. There are two main reasons to consider Byzantine
failures: theoretical (this is the most general failure mode); and
practical (the fail-stop hypothesis is not always verified; Byzantine
failures cover the case of malicious attacks; and some critical
applications require the highest possible degree of fault tolerance).
Early research on Byzantine failures has considered the problem of
reliable broadcast. The main results are the following (f is the
maximum number of faulty processes).
With synchronous communication
[Lamport et al. 1982], reliable broadcast is possible if the
number of processes is at least 3f + 1. The algorithm requires
f + 1 rounds, and its cost (in terms of number of messages) is
exponential in the number of processes. More generally, consensus can
be achieved with the same degree of redundancy.
With asynchronous communication [Bracha and Toueg 1985], a
weak form of reliable broadcast can be achieved if the number of
processes is at least 3f + 1: if the sender is correct, all
correct processes deliver the value that was sent; if the sender is
faulty, either all correct processes deliver the same (unspecified)
value, or the algorithm does not terminate, and no correct process
delivers any value.
In both cases the minimum redundancy degree is 3f + 1. In synchronous
systems, this factor may be reduced to 2f + 1 if messages can be
authentified.
For a long period, research on Byzantine failures did not have much
practical impact, since the algorithms were considered too expensive.
The situation has changed in recent years, and several practical
fault tolerance protocols dealing with Byzantine failures have been
proposed. Here is a brief summary of these efforts.
[Castro and Liskov 2002] introduced Practical Byzantine Fault Tolerance
(PBFT), a form of state machine replication (11.3.1)
using an extension of the Paxos consensus protocol to achieve
agreement on a total order for requests among all non-faulty replicas.
In order to tolerate f failures, the protocol uses 3f + 1
replicas. We give an outline of the protocol below; see the
references fo a detailed description.
Like in classic Paxos (11.3.3), the protocol goes
through a sequence of views. In each view, a single primary starts an
agreement protocol; if the primary fails, a new view is created, with
a new primary. Safety is achieved by the agreement protocol, while
liveness depends on view change. All messages are authentified to
prevent corruption, replay and spoofing (which could be possible under
the Byzantine fault assumption).
The agreement protocol has three phases: pre-prepare, prepare, and
commit. The role of the first two phases is to totally order the
requests within a view. The role of the last two phases is to ensure
that requests that commit (i.e., are executed and provide a result)
are totally ordered across views.
In the pre-prepare phase, the primary proposes a sequence number n
for a request and multicasts it to the backups in a
PRE-PREPARE message. If a backup accepts this message (based
on cryptographic check and uniqueness of n within the current view),
it enters the prepare phase by multicasting a PREPARE
message, still including n, to all replicas (including the
primary). If a replica has received 2f PREPAREs matching
the PRE-PREPARE for a request r from different backups, it
marks the request as prepared. The following predicate is true: no
two non-faulty replicas can have prepared requests with the same n
and different contents15 (meaning different encrypted digests).
When it has a prepared request, a replica multicasts a
COMMIT message to the other replicas, thus starting the
commit phase. A replica accepts this message if it is properly signed
and the view in the message matches the view known as current by the
replica. The commit phase ensures that the request is prepared at
f + 1 or more replicas. The key point here is that this condition
can be checked by a local test at some replica16 (see the original paper for a proof of this property).
After it has committed a request, a replica executes the work
specified in the request and sends the result to the client. The
client waits for f + 1 matching replies. Since at most f replicas
can be faulty, the result is correct.
A view change protocol detects the failure of the primary (by a timeout
mechanism, which implies partial synchrony), and chooses a new primary.
The new primary determines the status of pending requests and resumes
normal operation.
This work has shown that Byzantine fault tolerance can be achieved at
acceptable cost, and has stimulated further research with the goal of
improving the performance of the protocol. Two main paths have been
followed: improving throughput, by increasing the number of replicas
and using quorums [Cowling et al. 2006,Abd-El-Malek et al. 2005]; improving latency, by
reducing the number of phases through speculation (optimistic
execution) [Kotla et al. 2007]. A generic, modular approach, which aims
at combining the advantages of previous protocols, is presented in
[Guerraoui et al. 2008].
Availability. Maintaining several copies of data on
different systems increases the probability of having at least one
available copy in the face of processor, system, or network
failures.
Performance. Replication allows parallel access to the
systems hosting the replicas, thus increasing the global throughput
for data access. Distributing replicas over a network allows a
client to access a replica close to its location, thus reducing
latency. Both factors favor scalability.
In this section, we use the term object to designate the unit
of replication, as chosen by the designer of the replication system.
An object may be defined at the physical level (e.g., a
disk block), or at the logical level (e.g., a file, or an item in a
database). Unless otherwise specified, we assume that replication is
based on logical objects.
The counterpart (and main challenge) of data replication is that the
replicas of an object need to be kept consistent (as discussed in
11.6.1). Maintaining
consistency has an impact on both performance and availability.
Designing a data replication system thus involves a trade-off between
these three properties.
The issue of data replication has been considered in two different
contexts: distributed systems and databases. The main motivation of
replication is availability for distributed systems, and performance
for databases. The two communities have traditionally taken different
approaches: database tend to closely integrate replication with data
access protocols, while distributed systems use generic tools such as
group communication. In recent years, efforts have been made towards a
unified approach to data replication. [Wiesmann et al. 2000b] analyze
the solutions developed in the two communities and compare them using
a common abstract framework. This trend towards convergence has led to
the emergence of a middleware-based approach to database replication,
in which replication is controlled by a middleware layer located
between the clients and the database replicas, and separate from the
data access protocols. Separating these two concerns simplifies
development and maintenance, and allows using techniques developed for
distributed systems, such as group communication protocols.
[Cecchet et al. 2008] examine the state of the art and the main
challenges of middleware-based database replication.
In an often cited paper, [Gray et al. 1996] discuss the
trade-off between consistency and performance in replicated databases.
They distinguish between two approaches:
Eager replication, also called pessimistic
approach: keeping all replicas synchronized, by updating the
replicas inside one atomic transaction (i.e., no access is permitted
until all replicas are updated).
Lazy replication, also called optimistic approach:
performing update at one replica, and thereafter asynchronously
propagating the changes to the other replicas.
Hybrid methods,
combining eager and lazy replication, have also been proposed.
Eager replication maintains strong consistency (in the sense defined
in 11.6.1), but it delays
data access, and does not scale. In practice, its use is limited to
sites located on a local area network, under moderate load. Lazy
replication scales well, and may be used with unreliable communication
networks. Lazy replication only ensures weak consistency, in the sense
that a read may return an out of date value; in addition, an update
operation runs the risk of being aborted in order to preserve
consistency.
In both eager and lazy replication, a read operation may usually be
performed at any site holding a replica. Regarding updates, a
distinction may be made between two approaches, which correspond to
the two patterns identified in 11.3.1:
Update primary (or single-master). For each
object, one replica is designated as the primary copy, or master.
All updates are made on the master, which is responsible for
propagating them to the other replicas.
Update anywhere (or multi-master). An update
operation may originate at any replica. Potential conflicts must be
resolved by an agreement protocol between the involved replicas.
This distinction is orthogonal to that between eager and lazy
replication; thus both eager and lazy replication may be implemented using
either "update primary" or "update anywhere".
In this section, we present an overview of data replication
techniques, illustrated by examples from both databases and
distributed systems. Section
11.7.1 deals with strongly consistent
replication. Section 11.7.2 examines weakly
consistent replication. Section 11.7.3
presents a brief conclusion on data replication.
Eager replication preserves a strong form of consistency, usually
one-copy serializability, as defined in 11.6.1.
Another consistency criterion (snapshot isolation), weaker than 1SR,
is discussed later in this section.
[Wiesmann et al. 2000a] propose a classification of eager
replication techniques for databases using transactions to access
data. In addition to the distinction between primary copy and update
everywhere, they identify two other criteria: (i) linear or constant
interaction, according to whether the updates are propagated operation
by operation, or in a grouped action at the end of a transaction; and
(ii) voting or non voting, according to whether the different replicas
execute or not a coordination phase at the end of a transaction. They
conclude that linear interaction suffers from excessive overhead (due
to the large number of update propagation messages), and that constant
interaction should be preferred. Voting is needed if the order in
which operations are performed on the replicas is non-deterministic.
We now examine the main techniques used to ensure eager replication.
Eager Update Anywhere
The basic protocol for eager replication is read one-write all
(ROWA). An update operation on an object is performed on all the
nodes holding a replica of the object; a read operation is only done
on the local copy (or on the closest node holding a replica).
The drawback of this technique is that a failure of a node blocks
update operations on the objects that have a replica on that node.
Two solutions have been proposed to avoid this problem.
Update only the available replicas, i.e., those located on
non-failed, accessible nodes (read one-write all available,
or ROWAA [Bernstein et al. 1987]). When a failed node recovers, it needs to
update the replicas that it holds before being able to process
requests.
Use a quorum-based protocol [Gifford 1979,Thomas 1979],
which requires that a minimum number of sites (a read or write
quorum) be available for both read and write operations. The
basic protocol requires that r + w > N, where r is the read
quorum, w is the write quorum, and N the number of replicas.
This guarantees that a read quorum and a write quorum always
intersect; therefore, if the most recently updated copy is selected
for a read, it is guaranteed to be up to date. The additional
condition w > N/2 only allows an update if a majority of sites are
available; this prevents divergence of replicas in case of a network
partition. The protocol may be refined by assigning different
weights to the replicas (N is now the sum of the weights).
If transactions are supported, a 2PC protocol
(9.4
) is needed if transactions
contain writes, and 1SR is ensured by a concurrency control algorithm.
[Jiménez-Peris et al. 2003] compare ROWAA and quorum-based protocols.
They conclude that ROWAA is the best solution in most practical
situations, specially in terms of availability. Quorums may be of
interest in the case of extreme loads.
For both methods, scalability is limited (a few tens of nodes),
specially if the update rate is high. For database systems using
locks to ensure concurrency control, a strong limiting factor for
scalability if the probability of deadlocks, which may in some cases
grow as N3, N being the number of replicas [Gray et al. 1996].
Several approaches, often used in combination, have been proposed to
overcome the limitations of ROWAA.
Using group communication protocols to propagate update to
replicas, with order guarantees, in order to reduce the probability
of conflicts, and to allow increased concurrency.
Replacing the 1SR condition by a weaker one, snapshot
isolation (SI), see . Within a
transaction, the first write creates a new version of the updated
object17. Subsequent reads and writes
access this version, while reads not preceded by a write return the
last committed version of the object being read. Concurrent writes
on the same object by two transactions are not allowed (one of the
transactions must abort). Thus reads are neither blocking nor being
blocked, and are therefore decoupled from writes, which increases
concurrency.
Taking advantage of cluster architectures.
We illustrate these approaches with a brief review of three examples.
1) Database State Machine.
The database state machine [Pedone et al. 2003] is the transposition
of the replicated state machine model (11.3.1) to
databases. It uses atomic multicast to order updates. The entire
database is replicated on several sites. A transaction is processed at
a single site (e.g., the nearest). The identity of the objects that
are read and written by the transaction (readset and
writeset, respectively) is collected, as well as the values of
the updates. When the transaction issues a commit command, it is
immediately committed if it is read only. If the transaction contains
writes, the writesets, readsets and updates are atomically multicast
to all sites holding a replica of the database. When a site receives
this information for a transaction T, it certifies T against all
transactions that conflict with T (as known to the the site). All
sites execute the same certification protocol (based on concurrency
control rules) and get the transaction data in the same order.
Therefore, all sites will make the same decision for T (commit or
abort). If the transaction commits, its updates are performed at all
sites (this is called the deferred update technique). The
certification test described in [Pedone et al. 2003] guarantees
1SR. The database state machine approach avoids distributed locking,
which improves scalability.
The database state machine is an abstract model, which has only been
evaluated by simulation. It may be considered as a basis for the
development of actual protocols (for instance, the Postgres-R(SI)
protocol described below is based on the same principles, with a
relaxed consistency condition).
2) Postgres-R(SI): Group Communication and Snapshot Isolation.
Postgres-R(SI) [Wu and Kemme 2005] is a system implementing SI, and
based on group communication. A transaction can be submitted at any
replica. It executes on that replica, and collects all its write
operations in a writeset. When the transaction commits, it multicasts
its writesets to all replicas, using uniform atomic (totally ordered)
multicast. All replicas execute the operations described in the
writesets they receive, in the order the writesets were delivered,
which is the same for all replicas. This protocol uses less messages
than ROWAA, and allows for increased concurrency, since a transaction
may commit locally, without running a 2PC protocol. We do not describe
the concurrency control algorithm.
Site failures are detected by the group communication protocol. The
group continues working with the available sites. When a site restarts
after a failure, it must run a recovery protocol to update its state,
by applying the writesets that it missed (these are recovered from a
log on a correct site). During this recovery process, the writesets
generated by current transactions are buffered for further execution.
3) C-JDBC: Cluster-based Replicated Database.
Clusters of workstations have been developed as an alternative to
high-end servers. In addition to being easily extensible at a
moderate cost, they allow a potentially high degree of parallelism,
together with high performance communication. One proposal to exploit
these features for data replication at the middleware level is
Clustered JDBC, or C-JDBC [Cecchet et al. 2004]. C-JDBC is a
front-end to one or several totally or partially replicated databases
hosted on a cluster and accessible through the Java Database
Connectivity (JDBC) API. It presents a single database view (a virtual
database) to the client applications.
C-JDBC is a software implementation of the concept of RAIDb (Redundant
Array of Inexpensive Databases), which is a counterpart of the
existing RAIDs (Redundant Array of Inexpensive Disks). Like RAIDs,
RAIDbs come in different levels, corresponding to various degrees of
replication and error checking.
C-JDBC is composed of a JDBC driver, which exports the interface
visible to the client applications, and a controller, which handles
load balancing and fault tolerance, and acts as a proxy between the
C-JDBC driver and the database back-ends.
Operations are synchronous, i.e., the controller waits until it has a
response from all back-ends involved in an operation before it sends a
response to a client. To reduce latency for the client, C-JDBC also
implements early response, i.e., the controller returns the response
as soon as a preset number of back-ends (e.g., one, or a majority) has
executed an operation. In that case, the communication protocol
ensures that the operations are executed in the same order at all
involved back-ends.
C-JDBC does not use a 2PC protocol. If a node fails during the
execution of an operation, it is disabled. After repair, a log-based
recovery protocol restores an up to date state.
The controller is a single point of failure in C-JDBC. To improve
availability, the controller may be replicated18. To ensure mutual consistency,
the replicated controllers use totally ordered group communication
to synchronize write requests and transaction demarcation commands.
A system inspired by C-JDBC is Ganymed [Plattner and Alonso 2004], which
implements snapshot isolation in order to reduce the probability
of conflicts. Ganymed uses a primary copy approach, and the
controller ensures that updates are done in the same order at
the backup replicas.
In conclusion, update anywhere for eager replication may be summarized
as follows. ROWAA is a simple protocol for non-transactional
operations. If transactions are used, the traditional technique based
on ROWAA is hampered by the deadlock risks of distributed locking and
by the cost of distributed commitment. Alternative approaches for
transactions involve the use of atomic multicast to propagate updates,
and a weakening of the one-copy serializability condition.
Eager Primary Copy
In the primary copy replication technique, one particular site holding
a replica of an object is designated as the primary for that object
(note that different subsets of data may have different primary
sites); the other sites holding replicas are backups. A transaction
which updates an object is executed at the primary for that object. A
the end of the transaction, the updates are propagated to the backups
in a single operation, which groups the changes in FIFO order. If the
technique is non-voting, the primary commits the transaction. If it
uses voting (in practice, applying a 2PC protocol), the primary and
the backups must wait till the conclusion of the vote. Some remarks
are in order.
If there are several primaries, the situation is close to that
of an update anywhere technique19 described above. In the non-voting
scheme, the communication protocol must guarantee total order for
the updates at the backup sites. In a voting scheme, no order
guarantee is needed, but the transaction runs the risk of being
aborted; a weak order guarantee (such as FIFO) reduces the risk of
abort.
In a non-voting protocol, a read operation is only guaranteed to
deliver an up to date result if it is performed at the primary (or
if the primary does not commit before all backups have been
updated). Otherwise, the situation is the same as in lazy
replication (11.7.2).
If a primary fails, the recovery process is different for voting
and non-voting techniques. With the voting technique, a backup is
always ready to become primary (this is called hot standby). With
the non-voting technique, the backup may have pending updates, and
needs to install them before becoming primary (this is called cold
standby).
In conclusion, primary copy for eager replication is essentially
used in two modes: (i) backup copies are used for reads, in which case
a voting protocol must be used; or (ii) backups are used for
recovery only, in which case all operations are done on the primary.
An early example of this latter use is Tandem's Remote Data Facility
[Lyon 1990], in which there is a single backup, and updates are
immediately propagated, thus ensuring hot standby.
Lazy replication trades consistency for efficiency; fault tolerance is
less of a priority than in eager replication. After recovery from a
failure, some updates may have been lost. Lazy replication may be
implemented using the primary copy or the update anywhere techniques.
In both cases, the main consistency criterion is eventual convergence
(as defined in 11.6.1).
Lazy Primary Copy
With the lazy primary copy (or single master) technique, all updates
are done on a designated site, the primary20. All operations
commit immediately. Updates are propagated asynchronously to the
backup sites, using either a push or a pull method. Read operations
may be done either on the primary or on the backups; in the latter
case, an out of date value may be returned, which is acceptable in
many applications. Some systems allow a given degree of freshness
to be specified for reads, e.g., in terms of maximum age.
Since all updates are done on a single site, potential conflicts
between concurrent updates are easily detected and may be avoided by
delaying or aborting some operations.
Because of its simplicity, lazy primary copy is the most commonly used
technique in commercial database systems. Its main drawback is that
the primary site is a single point of failure. If the primary fails, a
backup is selected as the new primary, but some updates may have been
lost.
One technique that attempts to avoid the loss of updates is to keep a
log of updates in stable (failure-resistant) storage. This technique
is used by the Slony-I system [Slony-I ], which supports several
back-ups, possibly organized as a cascade. This technique attempts to
approximate hot standby, while keeping the benefits of
primary copy update.
Lazy Update Anywhere
Lazy update anywhere (or multi-master) techniques are intended to be
more efficient than those based on primary copy, by increasing
concurrency. The counterpart is that conflicts may occur between
concurrent updates at different sites; such conflicts must be detected
and resolved. For these systems, fault tolerance is not the primary concern.
[Saito and Shapiro 2005] is an extensive survey of lazy (optimistic)
update anywhere replication approaches, mostly for non-database
application. They distinguish between state-transfer and
operation-transfer systems. In the former, the replicas of an object
are updated by copying their contents. In the latter, the operations
are propagated to the replicas and executed there.
For state-transfer systems, Thomas's write rule [Thomas 1979]
ensures uniformity. Recall (9.2.3)
) that this rule is based on timestamps; a replica of an
object is updated when it detects (e.g., by periodic inspection) a
peer holding a more recent copy of the object. Conflicts between
concurrent updates are resolved by the "last writer wins" policy.
For operation transfer systems, the situation is analogous to that
described in 11.7.1: a sufficient condition for
consistency is that the updates be applied at each replica in the same order.
This order may be imposed by the sender, through atomic broadcast, or
determined by the receivers, using time-stamp vectors. As above, one
can use the semantics of the application to loosen the constraint
on the order of updates (for example, non-interfering updates may
be applied in any order).
Several issues need to be considered for data replication: implemented by
a middleware layer or integrated in the application, eager vs lazy
update, what consistency guarantees?
Eager replication, which gives strong consistency guarantees, is
gaining favor as new designs allow improved performance, specially on
clusters. Lazy replication is mandatory in systems that are highly
dynamic or have network reliability or connectivity problems, such as
MANETs (mobile ad-hoc networks). Such systems also rely on probabilistic
techniques (gossip protocols), such as described in 11.4.4.
In practice, essentially for performance reasons, many commercial
database systems use primary-based, lazy update replication,
integrated within the database kernel. Availability relies on
hot standby solutions.
Solutions based on middleware-based systems are investigated.
Current efforts are based on group protocols, and tend to favor
the eager, update anywhere approach, with snapshot isolation.
There is still a gap between current research and actual practice
(see [Cecchet et al. 2008]).
Fault tolerance has always been a primary concern in computing
systems. In the early days, attention was mainly focused on
unreliable hardware. Error detecting and correcting codes
were used to deal with unreliable memory and communication links.
Backup techniques (saving drum or disk contents
on magnetic tapes) were used for data preservation, with the risk of
data loss in the intervals between backups. Later on, disk mirroring
techniques improved the situation, but their use was limited by their
high relative cost. To deal with processor failures, Triple Modular
Redundancy was introduced for critical applications. Software
reliability only started receiving attention by the end of the 1960s.
The 1970s are a period of fast progress for computing systems
availability. The first International Symposium on Fault Tolerant
Computing (FTCS) takes place in 1971; it is still mostly devoted to
hardware aspects, but software based techniques are beginning to
develop. An early attempt at a purely software approach to fault
tolerance is the concept of recovery block [Randell 1975], based on
redundant programming of critical routines. The design of the SIFT
aircraft control system [Wensley et al. 1976] is a large scale
effort, mainly using software methods, to build a reliable critical
application.
The Tandem highly available systems (1976) mark a breakthrough. While
previous fault tolerance techniques were essentially application
specific, the Tandem NonStop system [Bartlett 1981]
introduces a generic approach combining hardware and software
replication (most notably, process pairs). However, process
checkpointing is a source of overhead. The Stratus systems (1980)
eliminates overhead by a purely hardware approach, at the expense of
quadruple redundancy (2 duplexed pairs of processors, the processors
of each pair working in lockstep and performing a continuous
consistency check).
One of the first available server systems based on the primary-backup
approach (with a single backup) is described in [Alsberg and Day 1976].
The replicated state machine paradigm is introduced in
[Lamport 1978a], and further refined in
[Schneider 1990]. The atomic commitment problem, and its
first solution (2PC), are presented in [Gray 1978]. One of the
first impossibility results (widely known as "the Generals' paradox"
from [Gray 1978]), related to unreliable communication, is
published in [Akkoyunlu et al. 1975]. An influential paper on data
availability is [Lampson and Sturgis 1979], which introduces the notion
of stable storage. Algorithms for database replication are studied,
and the concepts of quorum and majority voting are introduced
[Gifford 1979,Thomas 1979].
The 1980's and early 90's are marked by a sustained effort to ground
the design and construction of fault tolerant systems on a sound
fundamental base. Computing systems become distributed; the first
Symposium on Reliable Distributed Systems (SRDS) takes place in 1981.
As a consequence, communication aspects take an increasing importance.
Group communication is identified as an essential ingredient of fault
tolerant distributed computing, and the central role of agreement
protocols (consensus and atomic commitment) is recognized:
Paxos [Lamport 1998], an efficient consensus algorithm,
is published in 1989, but its significance will only be fully
recognized much later.
Unreliable failure detectors are introduced in
[Chandra and Toueg 1991]; this paper also gives a
consensus-based implementation of atomic broadcast.
The atomic commitment problem is further explored; a
non-blocking solution is proposed in [Skeen 1981]; further
advances are described in [Babaoglu and Toueg 1993]. Advances in
fault-tolerant database systems are described in [Bernstein et al. 1987].
The notion of virtual synchrony, which associates group membership and
communication, appears in [Birman and Joseph 1987].
Byzantine agreement (a problem that was already identified during the
design of the SIFT system) is explored, and its impossibility for 3f
processes with f faults is proven [Lamport et al. 1982]. A
number of other impossibility results, including FLP [Fischer et al. 1985] are
discovered; a review of these results is in [Lynch 1989].
The first mention of gossip-based communication appears in
[Demers et al. 1987], in a replicated database context, but the
idea will only be put to wider practical use a decade later.
The main advance in hardware-based availability in this period is the
invention of the RAIDs [Patterson et al. 1988]. As hardware becomes
more reliable, the increasing role of software and administration
faults is recognized [Gray 1986].
[Cristian 1991] describes the state of the art in
fault-tolerant distributed systems at the end of this period.
The mid and late 1990's see the development of distributed systems:
cluster computing, distributed transactions, database replication,
fault-tolerant middleware. Group communication is now well understood
([Hadzilacos and Toueg 1993] present a survey of this area, which
clarifies the concepts and terminology), and used in practical systems.
The interplay between theory and practice in the areas of group
communication and replication, and its evolution over time, is
analyzed in [Schiper 2003,Schiper 2006b].
The 2000's are dominated by two main trends: the rise of Internet computing and
services, and the increasing use of mobile devices and ad hoc networking.
An analysis of Internet services failures [Oppenheimer et al. 2003] confirms
the trends identified in [Gray 1986]: it shows the decreasing
importance of hardware faults, and the dominating role of management
related failure causes, such as wrong configuration. A consequence of
large scale is the fact that all elements of a system cannot be expect
to be fully operational at any point in time. Partial availability is
bound to be the rule. The importance of fast failure detection and
recovery is emphasized, as illustrated, for example, by project ROC
[ROC 2005].
As the size and dynamism of computing systems increases, there is a
need for new communication paradigms. Probabilistic methods, such as
gossip based broadcast, appear as a promising path in large scale
systems communication (see [Kermarrec and van Steen 2007]).
Concerning the interplay between theory and practice, the treatment of
Byzantine failures receives an increasing attention. Byzantine failures
are shown to be tractable in practice with an acceptable cost, as
illustrated by the experiments described in 11.6.4
Abd-El-Malek, M., Ganger, G. R., Goodson, G. R., Reiter, M. K., and Wylie,
J. J. (2005).
Fault-Scalable Byzantine Fault-Tolerant Services.
In Proceedings of the 20th ACM Symposium on Operating Systems
Principles (SOSP'05), pages 59-74.
Operating Systems Review, 39(5), December 2005.
Akkoyunlu, E. A., Ekanadham, K., and Huber, R. V. (1975).
Some constraints and tradeoffs in the design of network
communications.
SIGOPS Operating Systems Review, 9(5):67-74.
Alsberg, P. A. and Day, J. D. (1976).
A principle for resilient sharing of distributed resources.
In Proceedings of the 2nd International Conference on Software
Engineering (ICSE'76), pages 627-644, San Francisco, California, USA.
Avizienis, A., Laprie, J.-C., Randell, B., and Landwehr, C. (2004).
Basic Concepts and Taxonomy of Dependable and Secure Computing.
IEEE Transactions on Dependable and Secure Computing,
1(1):11-33.
Ban, B. (1998).
Design and Implementation of a Reliable Group Communication Toolkit
for Java.
Technical Report, Dept. of Computer Science, Cornell University,
September 1998.
http://www.jgroups.org/.
Bartlett, J. F. (1981).
A NonStop Kernel.
In Proceedings of the Eighth ACM Symposium on Operating Systems
Principles (SOSP '81), pages 22-29, New York, NY, USA. ACM.
Bartlett, W. and Spainhower, L. (2004).
Commercial Fault tolerance: A Tale of Two Systems.
IEEE Transactions on Dependable and Secure Computing,
1(1):87-96.
Birman, K. P. and Joseph, T. A. (1987).
Exploiting virtual synchrony in distributed systems.
In Proceedings of the Eleventh ACM Symposium on Operating
Systems Principles (SOSP'87), pages 123-138.
Candea, G., Kawamoto, S., Fujiki, Y., Friedman, G., and Fox, A. (2004).
Microreboot - A Technique for Cheap Recovery.
In Proceedings of the Sixth Symposium on Operating Systems
Design and Implementation (OSDI'04), pages 31-44, San Francisco, CA, USA.
Castro, M. and Liskov, B. (1999).
Practical byzantine fault tolerance.
In Proceedings of the Third Symposium on Operating Systems
Design and Implementation (OSDI'99), pages 173-186, New Orleans, Louisiana.
Castro, M. and Liskov, B. (2002).
Practical byzantine fault tolerance and proactive recovery.
ACM Transactions on Computer Systems, 20(4):398-461.
Based on work published in Usenix OSDI'99 (173-186) and
OSDI'00 (273-288).
Cecchet, E., Ailamaki, A., and Candea, G. (2008).
Middleware-based Database Replication: The Gaps between Theory and
Practice.
In SIGMOD'08: Proceedings of the 2008 ACM SIGMOD International
Conference on Management of Data, June 9-12 2008, Vancouver, Canada.
Cecchet, E., Marguerite, J., and Zwaenepoel, W. (2004).
C-JDBC: Flexible Database Clustering Middleware.
In Proc. USENIX Annual Technical Conference, Freenix Track,
Boston, MA, USA.
Chandra, T. D., Griesemer, R., and Redstone, J. (2007).
Paxos made live: an engineering perspective.
In Proceedings of the Twenty-sixth ACM Symposium on Principles
of Distributed Computing (PODC'07), pages 398-407, New York, NY, USA. ACM.
Chandra, T. D., Hadzilacos, V., Toug, S., and Charron-Bost, B. (1996b).
On the Impossibility of Group Membership.
In Proc. ACM Symposium on Principles of Distributed Computing
(PODC).
Chandra, T. D. and Toueg, S. (1991).
Unreliable failure detectors for reliable distributed systems.
In Proceedings of the 10th ACM Symposium on Principles of
Distributed Computing (PODC), pages 325-340.
Chandra, T. D. and Toueg, S. (1996).
Unreliable failure detectors for reliable distributed systems.
Journal of the ACM, 43(2):225-267.
A preliminary version appeared in [Chandra and Toueg 1991].
Chandy, K. M. and Lamport, L. (1985).
Distributed snapshots: determining global states of distributed
systems.
ACM Transactions on Computer Systems, 3(1):63-75.
Chockler, G. V., Keidar, I., and Vitenberg, R. (2001).
Group Communication Specifications: a Comprehensive Study.
ACM Computing Surveys, 33(4):427-469.
Cowling, J., Myers, D., Liskov, B., Rodrigues, R., and Shrira, L. (2006).
HQ Replication: A Hybrid Quorum Protocol for Byzantine Fault
Tolerance.
In Proceedings of the Seventh Symposium on Operating Systems
Design and Implementation (OSDI'06), pages 177-190, Seattle, WA, USA.
Défago, X., Schiper, A., and Urbán, P. (2004).
Total Order Broadcast and Multicast Algorithms: Taxonomy and
Survey.
ACM Computing Surveys, 36(4):372-421.
Demers, A., Greene, D., Hauser, C., Irish, W., Larson, J., Shenker, S.,
Sturgis, H., Swinehart, D., and Terry, D. (1987).
Epidemic algorithms for replicated database maintenance.
In Proceedings of the Sixth ACM Symposium on Principles of
Distributed Computing (PODC '87), pages 1-12, New York, NY, USA. ACM.
Elnozahy, E. N. M., Alvisi, L., Wang, Y.-M., and Johnson, D. B. (2002).
A survey of rollback-recovery protocols in message-passing systems.
ACM Computing Surveys, 34(3):375-408.
Fischer, M. J., Lynch, N. A., and Paterson, M. S. (1985).
Impossibility of distributed consensus with one faulty process.
Journal of the ACM, 32(2):374-382.
Gifford, D. K. (1979).
Weighted voting for replicated data.
In Proceedings of the 7th ACM Symposium on Operating Systems
Principles (SOSP'79), pages 150-162.
Gray, J. (1986).
Why Do Computers Stop and What Can Be Done About It?
In Symposium on Reliability in Distributed Software and Database
Systems, pages 3-12.
Gray, J., Helland, P., O'Neil, P., and Shasha, D. (1996).
The dangers of replication and a solution.
In SIGMOD'96: Proceedings of the 1996 ACM SIGMOD International
Conference on Management of Data, pages 173-182.
Guerraoui, R., Quéma, V., and Vukoli\'c, M. (2008).
The next 700 BFT protocols.
Technical Report LPD-2008-08, École Polytechnique
Fédérale de Lausanne, School of Computer and Communication Sciences,
Lausanne, Switzerland.
Hadzilacos, V. and Toueg, S. (1993).
Fault-Tolerant Broadcasts and Related Problems.
In Mullender, S., editor, Distributed Systems, pages 97-168.
Addison-Wesley.
Herlihy, M. P. and Wing, J. M. (1990).
Linearizability: a correctness condition for concurrent objects.
ACM Transactions on Programming Languages and Systems,
12(3):463-492.
Jiménez-Peris, R., Patiño-Martínez, M., Alonso, G., and Kemme,
B. (2003).
Are quorums an alternative for data replication?
ACM Transactions on Database Systems, 28(3):257-294.
Kotla, R., Alvisi, L., Dahlin, M., Clement, A., and Wong, E. (2007).
Zyzzyva: speculative Byzantine fault tolerance.
In Proceedings of the 21st ACM Symposium on Operating Systems
Principles (SOSP'07), pages 45-58.
Operating Systems Review, 41(6), December 2007.
Lamport, L. (1979).
How to Make a Multiprocessor Computer That Correctly Executes
Multiprocess Programs.
IEEE Transactions on Computers, 9(C-28):690-691.
Lamport, L., Shostak, R. E., and Pease, M. C. (1982).
The Byzantine Generals Problem.
ACM Transactions on Programming Languages and Systems,
4(3):382-401.
Lampson, B. W. and Sturgis, H. E. (1979).
Crash recovery in a distributed data storage system.
Technical report, Xerox PARC (unpublished), 25 pp.
Partially reproduced in: Distributed Systems - Architecture
and Implementation, ed. Lampson, Paul, and Siegert, Lecture Notes in
Computer Science 105, Springer, 1981, pp. 246-265 and pp. 357-370.
Laprie, J.-C. (1985).
Dependable Computing and Fault Tolerance: Concepts and Terminology.
In Proceedings of the 15th IEEE International Symposium on
Faul-Tolerant Computing (FTCS-15), pages 2-11.
Larrea, M., Fernández, A., and Arévalo, S. (2004).
On the Implementation of Unreliable Failure Detectors in Partially
Synchronous Systems.
IEEE Transactions on Computers, 53(7):815-828.
Larrea, M., Lafuente, A., Soraluze, I., and nas, R. C. (2007).
Designing Efficient Algorithms for the Eventually Perfect Failure
Detector Class.
Journal of Software, 2(4):1-11.
Lynch, N. (1989).
A hundred impossibility proofs for distributed computing.
In Proceedings of the 8th ACM Symposium on Principles of
Distributed Computing (PODC), pages 1-28, New York, NY. ACM Press.
Mostefaoui, A., Mourgaya, E., and Raynal, M. (2003).
Asynchronous Implementation of Failure Detectors.
In International Conference on Dependable Systems and Networks
(DSN'03), pages 35-360, Los Alamitos, CA, USA. IEEE Computer Society.
Oki, B. M. and Liskov, B. H. (1988).
Viewstamped Replication: A New Primary Copy Method to Support.
Highly-Available Distributed Systems.
In Proceedings of the Seventh annual ACM Symposium on Principles
of Distributed Computing (PODC'88), pages 8-17, New York, NY, USA. ACM.
Oppenheimer, D., Ganapathi, A., and Patterson, D. A. (2003).
Why do Internet services fail, and what can be done about it?
In 4th USENIX Symposium on Internet Technologies and Systems
(USITS '03).
Patterson, D. A., Gibson, G., and Katz, R. H. (1988).
A case for redundant arrays of inexpensive disks (raid).
In SIGMOD'88: Proceedings of the 1988 ACM SIGMOD International
Conference on Management of Data, pages 109-116, New York, NY, USA. ACM.
Pedone, F., Guerraoui, R., and Schiper, A. (2003).
The Database State Machine Approach.
Journal of Distributed and Parallel Databases and Technology,
14(1):71-98.
Plattner, C. and Alonso, G. (2004).
Ganymed: scalable replication for transactional web applications.
In Proceedings of the 5th ACM/IFIP/USENIX international
conference on Middleware (Middleware'04), pages 155-174, Toronto, Canada.
Springer-Verlag New York, Inc.
Randell, B. (1975).
System structure for software fault tolerance.
In Proceedings of the International Conference on Reliable
software, pages 437-449, New York, NY, USA. ACM.
Schiper, A. (2003).
Practical impact of group communication theory.
In et al., A. S., editor, Future Directions in Distributed
Computing (FuDiCo'02), volume 2584 of Lecture Notes in Computer
Science, pages 1-10. Springer-Verlag.
Schiper, A. (2006b).
Group communication: From practice to theory.
In SOFSEM 2006: Theory and Practice of Computer Science, number
3831 in Lecture Notes in Computer Science, pages 117-136. Springer-Verlag.
Schiper, A. and Toueg, S. (2006).
From Set Membership to Group Membership: A Separation of Concerns.
IEEE Transactions on Dependable and Secure Computing,
13(2):2-12.
Skeen, D. (1981).
Non-blocking commit protocols.
In SIGMOD'81: Proceedings of the 1981 ACM-SIGMOD International
Conference on Management of Data, pages 133-142, Orlando, FL, USA.
Thomas, R. H. (1979).
A majority consensus approach to concurrency control for multiple
copy databases.
ACM Transactions on Database Systems, 4(2):180-209.
van Renesse, R., Birman, K., Hayden, M., Vaysburd, A., and Karr, D. (1998).
Building adaptive systems using Ensemble.
Software-Practice and Experience, 28(9):963-979.
Wensley, J. H., Green, M. W., Levitt, K. N., and Shostak, R. E. (1976).
The design, analysis, and verification of the SIFT fault tolerant
system.
In Proceedings of the 2nd International Conference on Software
Engineering (ICSE '76), pages 458-469, Los Alamitos, CA, USA. IEEE Computer
Society Press.
Wiesmann, M., Pedone, F., Schiper, A., Kemme, B., and Alonso, G. (2000a).
Database replication techniques: a three parameter classification.
In Proceedings of 19th IEEE Symposium on Reliable Distributed
Systems (SRDS'00), Nürenberg, Germany. IEEE Computer Society.
Wiesmann, M., Pedone, F., Schiper, A., Kemme, B., and Alonso, G. (2000b).
Understanding replication in databases and distributed systems.
In Proceedings of 20th International Conference on Distributed
Computing Systems (ICDCS'2000), pages 264-274, Taipei, Taiwan. IEEE
Computer Society Technical Commitee on Distributed Processing.
Wu, S. and Kemme, B. (2005).
Postgres-R(SI): Combining Replica Control with Concurrency Control
based on Snapshot Isolation.
In IEEE International Conference on Data Engineering (ICDE),
Tokyo, Japan.
Footnotes:
1For a memoryless failure
process, let p be the probability of failure per unit time. Then,
if p << 1, MTTF » 1/p.
2Since fail-stop is a simple, well understood
behavior, a common technique is to force any failure to this mode,
by stopping a faulty component as soon as an error is detected,
and by signaling the failure to the users of the component. This
technique is called fail-fast.
3While this assumption is usually justified for
hardware components, it needs to be reconsidered if the failures are
due to environmental conditions, such as high temperature, shared by
all replicated components.
4Causal order
is defined by the happened before relationship
[Lamport 1978b], which subsumes local order on a single site
and "send before receive" order for message transmission between
sites.
5When the protocol is started by a client'
request (as opposed to a view change), the value is that proposed by
the client
6The election protocol may be very simple, as long as
it selects one primary per view. Conflicts between coexisting views
are solved as explain later.
7We do not need to consider
weak completeness (every faulty process is eventually suspected by
some correct process), because a weakly complete detector is
easily converted into a strongly complete one, by making each
process reliably broadcast the list of suspected processes.
8A detector belongs
to a given class if it has the properties specified for that class.
In the following, we often use the term "detector C" to denote a
detector of class C, where C is one of P, ... àS.
9also assume, for simplicity, that D p,q = Dq,p10Typically, if an upper bound f is
known for the number of tolerated failures, a process needs to
communicate with its f + 1 successors to ensure it will reach a
correct process.
11In
practice, steady state is usually reached quickly, typically after
the receipt of the first heartbeat message in a heartbeat-based
detector
12The basic algorithm assumes that the clocks of p
and q are synchronized; it can be extended, using estimation based
on past heartbeats, to the case of non-synchronized clocks.
13Typically, a message that was broadcast
by a process that failed during the broadcast may be unstable
14The backups do not actually execute
the requests, but their state evolves as if they did.
15The proof of this property goes as follows:
from the definition of prepared, at least f + 1 non faulty
replicas must have sent a pre-prepare or prepare message for request
r. If two correct replicas have prepared requests with different
contents, at least one of these senders has sent two conflicting prepares or pre-prepares; but this is not possible, since these replicas are non faulty.
16The local test
verifies the following predicate: the replica has a prepared request, and has
accepted 2 f + 1 matching commits (possibly including its own) from different replicas.
17This is similar to the copy-on-write technique used
in shared virtual memory systems.
18This
is called "horizontal" replication, in contrast with "vertical"
replication, which consists in building a tree of controllers to
support a large number of back-ends.
19For that reason, some
primary copy systems disallow transactions that update objects
with different primary sites.
20In some systems,
different objects may have different primary sites.
File translated from
TEX
by
TTH,
version 3.40. On 27 Feb 2009, 12:58.
